FSLEDH3NW/277

Spec Sheet IES File LM79 Instructions Spec Sheet EZ Layout

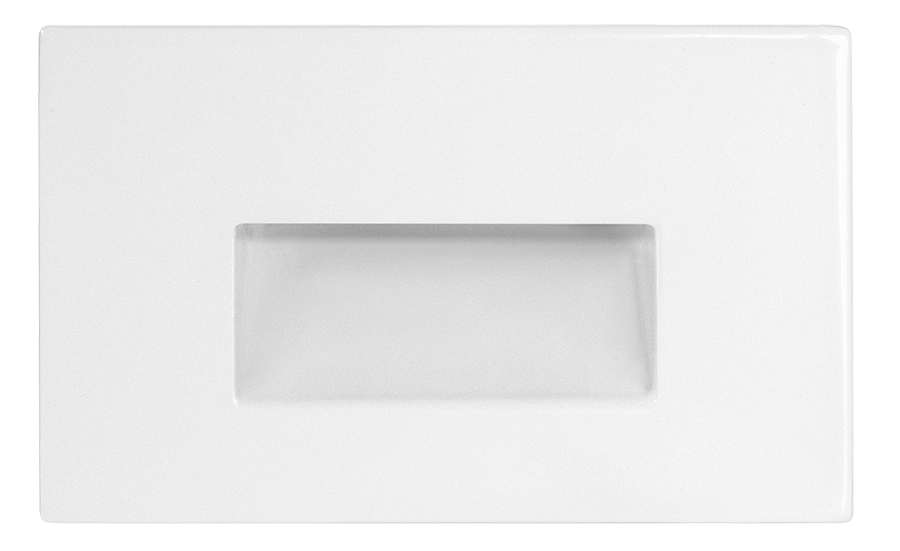

FSLEDH3NW/277

Easy installation into a recessed 2" x 4" job

Deep regress of light source eliminates glare

Concealed hardware for a clean, sophisticated look

Suitable for both indoor and outdoor use

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	3W
Color Temp	4000K (Neutral)
Lumens	106 lm
Efficacy	28.6 lm/W
Color Accuracy	83 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V
208V
240V
277V	0.201A
Input Watts	3.7W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.6 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

IP Rating

Ingress protection rating of IP66 for dust and water

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 5W/T3

Construction

Housing

Precision die-cast aluminum

Trim

1/2" Trim

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Lens

Tempered glass lens

Gaskets

High-temperature silicone

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Recessed junction box. Horizontal models.

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Electrical

THD

27.6% at 277V

Power Factor

96.4% at 277V
