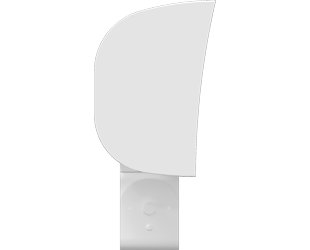

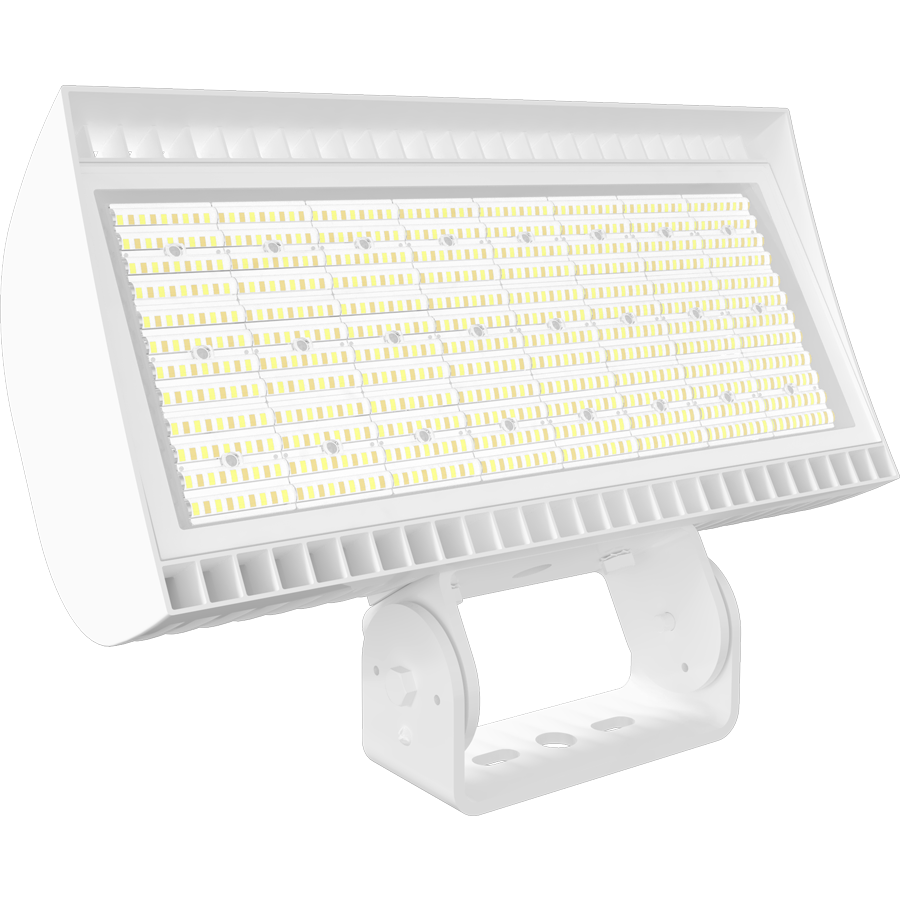

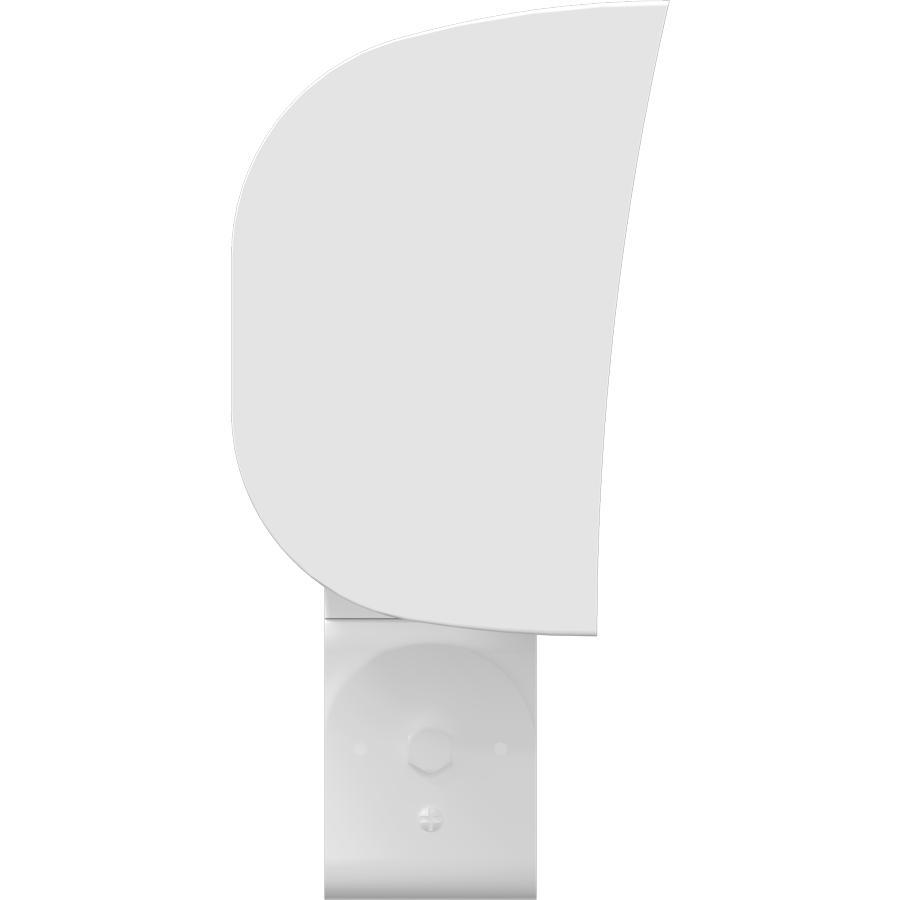

FXLEDMTW/480/7PR
FXLEDMTW/480/7PR
346W 3000/4000/5000K
- 100,000-hour life based on LM-80 results and TM-21 calculations
- DLC Premium Listed
- IP66 Rating protects against dust & water ingress
- 10-Year, No-Compromise Warranty
Performance
| Watts | 346/213W |
| Color Temp | 3000/4000/5000K |
| Lumens | 31553-49146 lm |
| Efficacy | 131.1-159.5 lm/W |
| Color Accuracy | 82-85 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.00A/0.00A |
| 208V | 0.00A/0.00A |
| 240V | 0.00A/0.00A |
| 277V | 0.00A/0.00A |
| Input Watts | 213-341.7W |
Dimensions
Weight: 23.8 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
346/213W (factory default 346W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K)
346/213W (factory default 346W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.
IP Rating
Ingress protection rating of IP65 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-UV7HJC
DLC Product Code: S-UV7HJC
LED Characteristics
LEDs
Long-life, high-efficacy, discrete, surface-mount LEDs
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
213W: Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.46A
346W: Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.72A
346W: Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.72A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Surge Protection
L/N: 6 kV, L/N-PE: 6 kV
7-Pin Receptacle
ANSI C136.41 7-pin receptacle, compatible with wireless control systems
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
346W: 1000W Metal Halide
213W: 750W Metal Halide
213W: 750W Metal Halide
Optical
NEMA Type
NEMA Beam Spread 7H x 6V
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Ambient Temperature
Max Power Temp Rating: 104°F (40°C )
Low Power Temp Rating: 49.7°C (121.5°F)
Low Power Temp Rating: 49.7°C (121.5°F)
Housing
Die-cast aluminum
Lens
Polycarbonate lens on LEDs, glass lens as cover
Reflector
Polyethylene Terephthalate (PET)
Gaskets
Ethylene Propylene Diene Monomer (EPDM)
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Heavy-duty Trunnion mount with stainless steel hardware
Other
10-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of ten (10) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
