G2
G2
- L5 color temperatures in 1 SKU (2700K, 3000K, 3500K, 4000K, 5000K)
- Deep regress remote driver downlight
- No recessed housing or J-box required
- New construction or retrofit applications
- Spring loaded retention clips
Performance
| Watts | 6W |
| Color Temp | |
| Lumens | 400 lm |
| Efficacy | 66.7 |
| Color Accuracy | 2700/3000/3500/4000/5000K CRI |
| L70 Lifespan |
| Type | Constant Current |
| 120V | 0.05A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 6W |
Dimensions
Weight: 0.5 lbs
Technical Specifications
Performance
Product Type

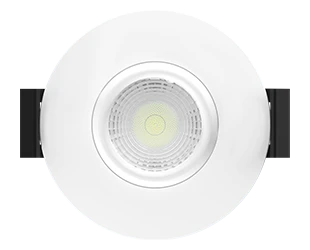

Recessed Gimbal Downlight
Description
Remote driver downlights are great for new construction and retrofit applications. Downlights provide small-aperture aesthetic, available in recessed, deep recessed and gimbal models in 2", 3", and 4" sizes.
Wattage Equivalency
50W incandescent
Input Wattage
6W
Lumens
2700K @ 373lm; 3000K @ 411lm; 3500K @ 434lm; 4000K @ 443lm; 5000K @ 433lm
Efficacy
2700K @ 62lm/W; 3000K @ 70lm/W: 3500K @ 76lm/W; 4000K @ 77lm/W; 5000K @ 72lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, Class 2, 60 Hz, 120V 0.05A
THD
≤25%
Power Factor
≥0.9
Dimmable
Yes, dims down to 10% on compatible TRIAC/ELV systems. See Dimmer Compatibility List on rablighting.com.
Input Voltage
120V
Operating Frequency
60 Hz
Input Current @ 120V (mA)
47mA
Operating Temperature
-13°F to 104°F (-25°C to 40°C)
MBCP
785
Flicker
≤30%
Tilt
30°
LED Characteristics
Beam Angle
38°±5°
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
>90 CRI
R9 Value
High color performance with R9 greater than or equal to 50
Color Consistency
4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Recessed, no housing required
Construction
Size
2"
Shape
Round
Finish
White
Enclosure Material
Metal
Trim Style
Smooth
Lens
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Air Tight
Housing certified Air Tight as per ASTM-E283
Compliance
Listings
ETL Listed
Environment
Suitable for use in dry, damp, and wet environments.
IC Rated
Suitable for direct contact with insulation. Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Energy Star Approved
This product is ENERGY STAR® Version 2.2 Certified.
Certification Model Number
DLG0010(G2)
T20 Compliant
No, this product does not meet California Title 20 requirements.
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
