GAMERGB/480

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

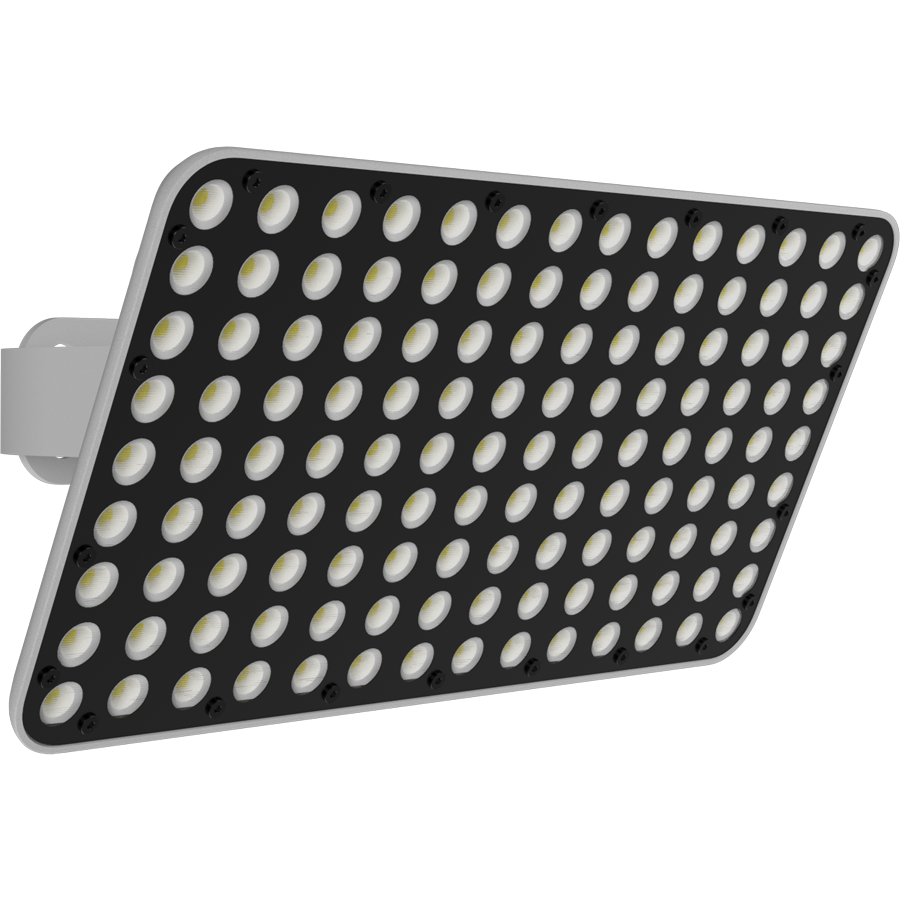

GAMERGB/480

120W 4000K/R/G/B

100,000-Hour LED lifespan

IP65 rating protects against dust and water

IK10 Rating

>10-Year, Limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	120W
Color Temp	4000K/R/G/B
Lumens	1671-8338 lm
Efficacy	15.3-70 lm/W
Color Accuracy	0-82 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V
208V	0.80A/0.84A/0.85A
240V	0.69A/0.73A
277V	0.60A/0.63A/0.64A
Input Watts	109.2-119.5W

EZ-Layout

Create Custom Lighting Layout

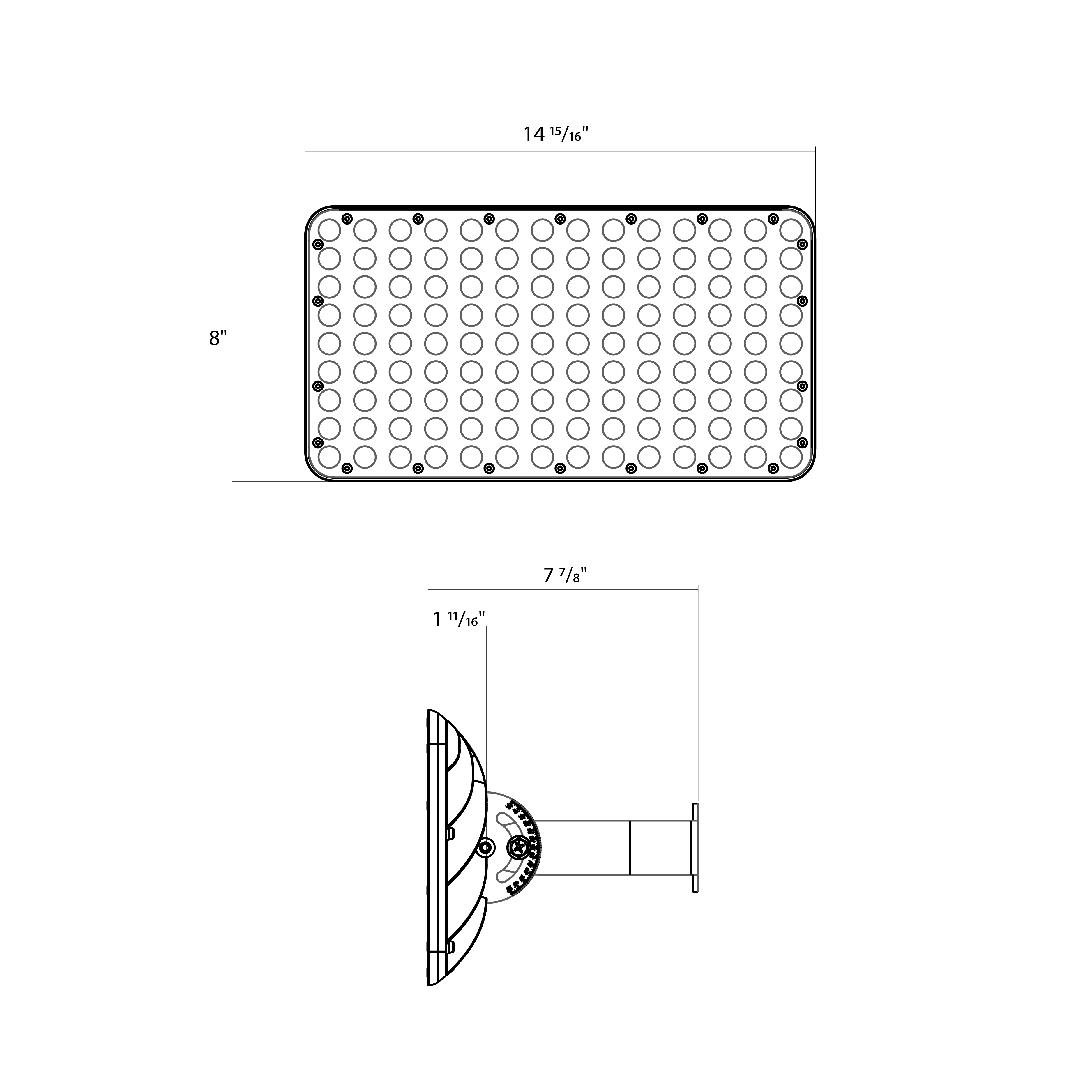

Dimensions

Weight: 21.1 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP65 for dust and water

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Electrical

Dimming Driver

Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.

Surge Protection

20 kV

Aux Power Supply

Yes

Dim to Off

Yes

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Construction

IK Rating

IK10 Protected against 20 joules impact. Equivalent to impact of 11 lbs (5kg) mass dropped from 15.8" (400mm) above impacted surface.

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Housing

Precision die-cast aluminum

Lens

Polycarbonate lens

Vibration Rating

3G vibration rating per ANSI C136.31

Tilt Increment

Continuous tilting with 5° increments

Reflector

Polyethylene Terephthalate (PET)

Effective Projected Area (EPA)

EPA = 3.2

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

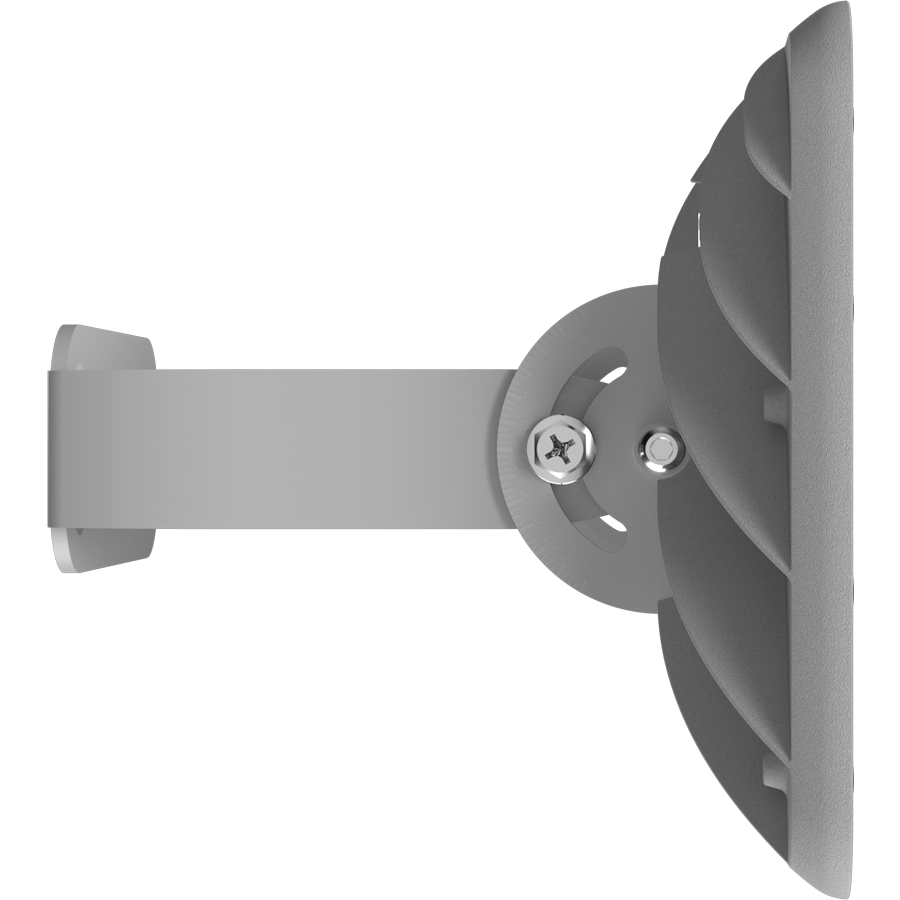

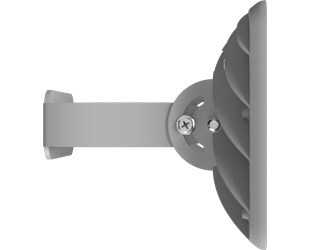

Mounting

Trunnion mount with stainless steel hardware

Optical

NEMA Type

NEMA Beam Spread 6H x 6V

Lightcloud

Light Shows

Dynamic RGBW light shows with customizable effects and color sequences using the Lightcloud Blue mobile app.

Other

10-Year Limited Warranty

The RAB 10-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
