GLW - RAB Lighting

GLW

Spec Sheet Instructions Sell Sheet Folleto (Español) Family Spec Sheet Spec Sheet

GLW

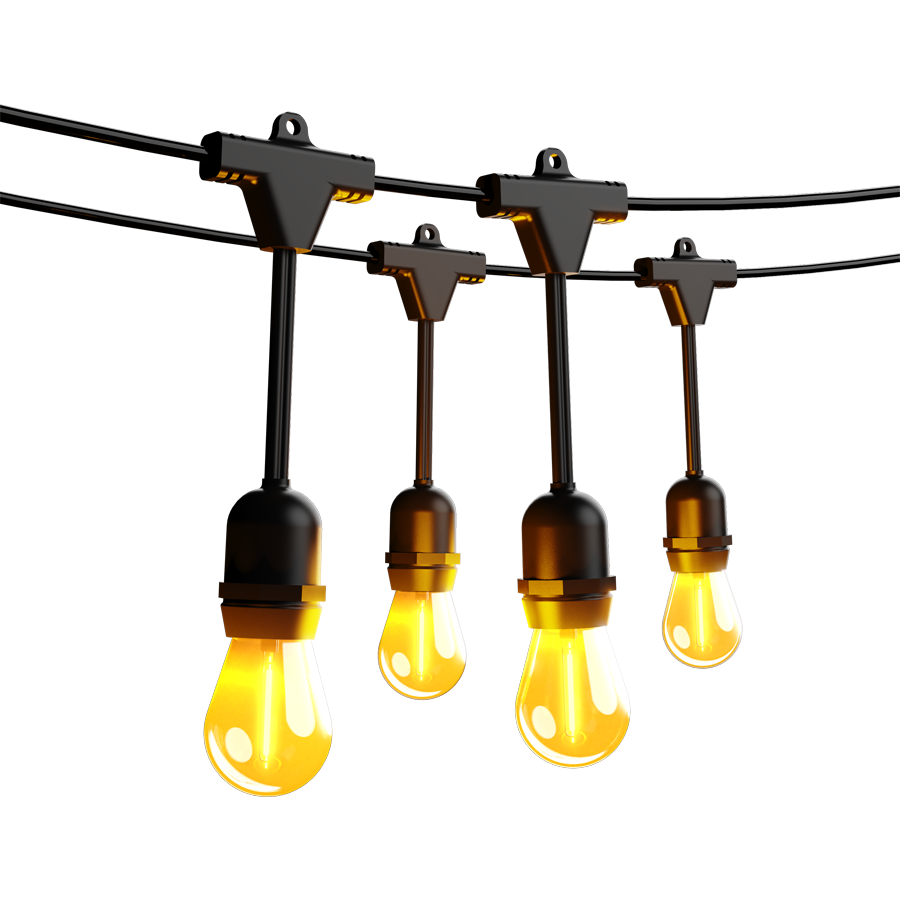

50 ft Decorative string with 24 S14 filament bulbs

Linkable up to 150 ft maximum run

Simple plug-and-play installation, no wiring required

Wet rated for indoor and outdoor use

Ideal for patios, restaurants, events, and retail spaces

View Technical Specs

View Price & Availability

Performance

Watts	24W
Color Temp	2200K
Lumens	1,560 lm
Efficacy	65
Color Accuracy	>80 CRI
L70 Lifespan	15,000 Hours

Type
120V
208V
240V
277V
Input Watts	24W

Dimensions

Weight: 6.8 lbs

Technical Specifications

Lightcloud

Lightcloud Blue

Lightcloud Blue is a Bluetooth® Mesh lighting control system designed for fast setup and flexibility. Install quickly with no gateways, hubs, or additional control wiring. Start with a single device and easily scale to control entire buildings.
Learn more at rablighting.com/lcb.

DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)

Gateway Required

Communication Protocol

Bluetooth Mesh

Light Shows

No, this product is not compatible with dynamic color changing Light Shows. Contact RAB for more information.

Range

Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.

Outdoor: Up to 200 feet clear line of sight; Up to 120 feet around corners

Spacing Criteria

Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network. Building materials such as brick, concrete, and steel construction or heavy vegetation, bushes or trees may require additional Lightcloud Blue devices to extend around an obstruction.

Sensor Settings

Remote Control Accessory

Yes, with additional devices, sold separately. Small projects use Nano to link with Amazon Alexa or Google Home for wireless control using those apps. Larger projects require one XDIM Bridge per Area plus a Gateway for full remote access via Lightcloud web portal or mobile app.

Performance

Product Type

Decorative String Light

Description

50 ft Decorative string lights, 120V, 2200K

Input Wattage

24W

Lumens (Nominal)

1,560lm

Efficacy

65lm/W

L70 Lifespan

15,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Voltage 120V 60; 120V: 215mA

THD

<5%

Power Factor

0.89

Dimmable

Input Voltage

120V

Construction

Operating Temperature

-4°F(-20°C) to 104°F (40°C )

Length

50 ft

Bulbs per String

Max Run Length

900 ft

Shape

S14

Finish

Black cord with clear filament style bulbs

Enclosure Material

Glass

Lens Finish

Clear

LED Characteristics

Beam Angle

120°

Color Temperature

2200K

Color Tuning

Color Accuracy (CRI)

>80 CRI

Natural Spectrum

R9 Value

High color performance with R9 greater than 0

Color Consistency

<3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Installation

Mounting

Plugs into a standard 15A 125V duplex receptacle

Base Type

NEMA 1-15, 2-prong plug

Replaceable Bulbs

GLW - includes (2) replacement S14 bulbs

Compliance

ETL Listed

This product has been tested by Intertek and found in compliance with accepted national standards.

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

Certification Model Number

GLW

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Accessories

EXTCBL-GLW
10 ft. Extension cable

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
