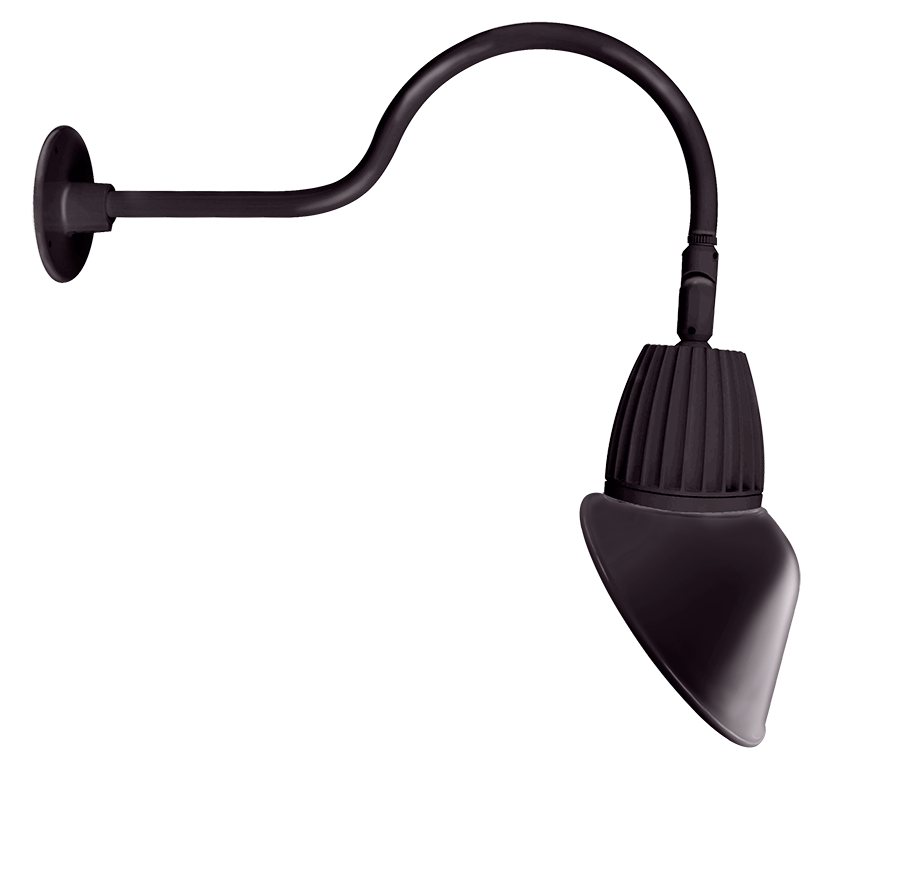

GN1LED26YAC11A
GN1LED26YAC11A
- Adjustable 45° swivel joint
- Superior heat sink
- Die-cast aluminum housing
- 5-Year, No-Compromise Warranty
Performance
| Watts | 26W |
| Color Temp | 3000K (Warm) |
| Lumens | 844 lm |
| Efficacy | 28.9 lm/W |
| Color Accuracy | 82 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.25A |
| 208V | 0.16A |
| 240V | 0.14A |
| 277V | 0.12A |
| Input Watts | 29.2W |
Dimensions
Weight: 13.6 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4ft (1.2m) of the ground.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent 120W Incandescent, 75W Metal Halide or 42W CFL
Construction
Fixture
The GN1LED26YAC11A comes with the GOOSE1A arm
Housing
Precision die-cast aluminum housing, lens frame and mounting plate
Gaskets
High-temperature Silicone
Mounting
Heavy-duty mounting arm with "O" ring seal and stainless steel screw
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Shades
11" Angled Cone Shade offered
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
LED Characteristics
LED
Single multi-chip, 26W high-output, long-life LED
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
Constant Current, Class 2, 100-277V, 50/60 Hz, 0.48 A, THD≤20%, PF 97.9%.
Surge Protection
4kV
Other
Patents
The design of the Gooseneck is protected by patents pending in US, Canada, China and Taiwan
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Lead Time
12 - 14 weeks standard shipping.
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
