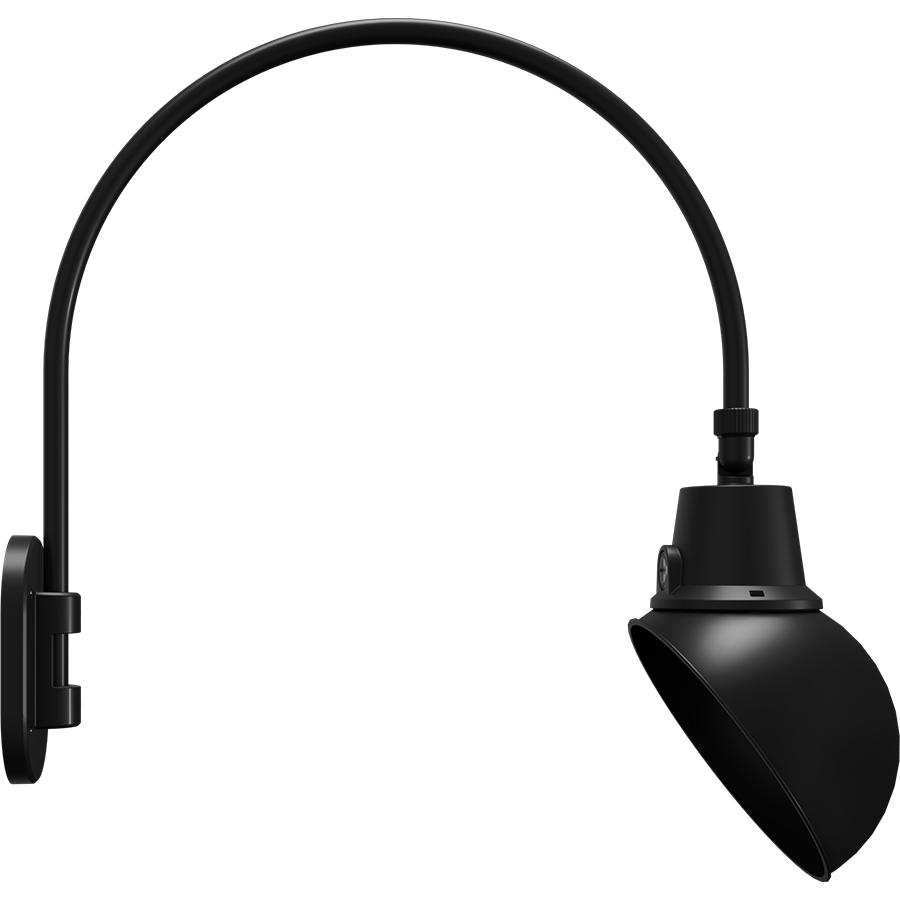

GN4FADB

25W 2700K/3000K/3500K/4000K/5000K

IP65 Rated

100,000-Hour LED lifespan

0-10V dimming, standard on all models

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	25/20/15W
Color Temp	2700K/3000K/3500K/4000K/5000K
Lumens	1611-2610 lm
Efficacy	97.4-110.3 lm/W
Color Accuracy	82-86 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.20A/0.17A/0.13A
208V	0.13A/0.11A/0.09A
240V	0.11A/0.09A/0.08A
277V	0.10A/0.08A/0.07A
Input Watts	15.6-24.9W

EZ-Layout

Create Custom Lighting Layout

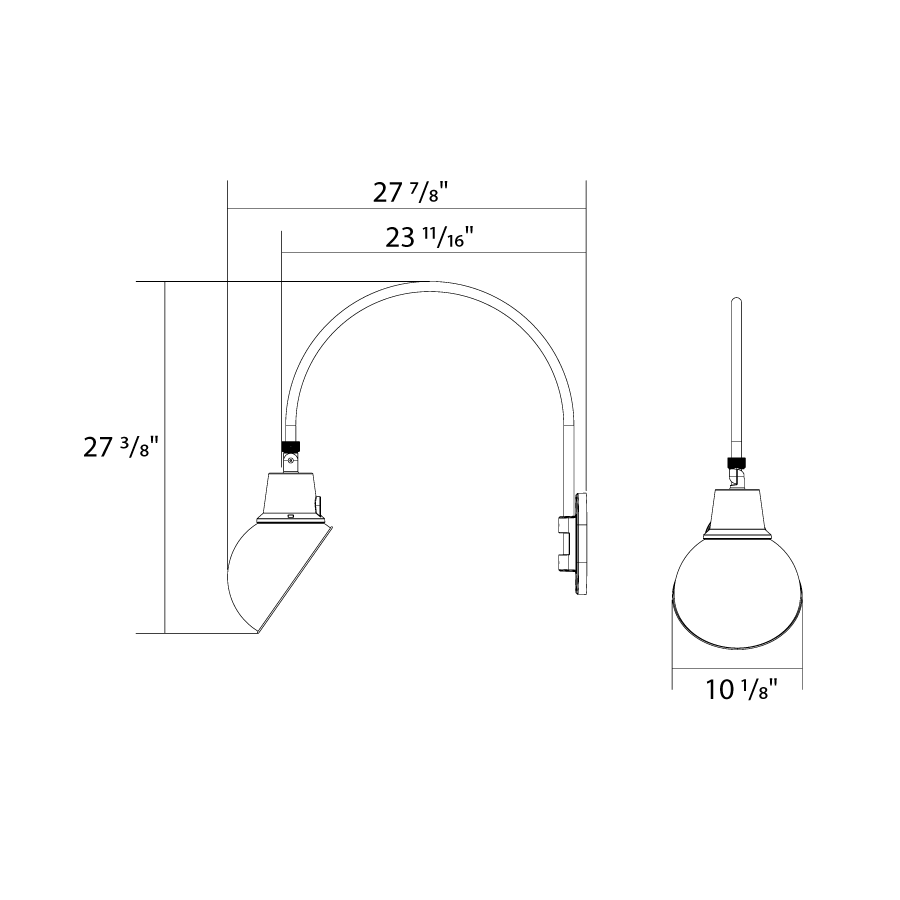

Dimensions

Weight: 5.8 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
25W/20W/15W (factory default 25W)
Color Temperature Selectable:
2700K, 3000K, 3500K, 4000K and 5000K (factory default 4000K)
On/Off Photocell (factory default "On")

Compliance

UL Listed

Suitable for wet locations

IP Rating

Ingress protection rating of IP65 for dust and water

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

LEDs

Long-life, high-efficacy, discrete, surface-mount LEDs

Color Consistency

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

Electrical

Driver

Constant Current, Class 1, 120-277V, 50/60 Hz:
25W: 120V: 0.21A, 208V: 0.12A, 240V: 0.11A, 277V: 0.10A
20W: 120V: 0.17A, 208V: 0.10A, 240V: 0.09A, 277V: 0.08A
15W: 120V: 0.13A, 208V: 0.18A, 240V: 0.07A, 277V: 0.06A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Surge Protection

4 kV L-N; 2kV L/N-G

Aux Power Supply

Dim to Off

Yes

Photocell

Integrated photocell included with on/off switch

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 122°F (50°C)

Housing

Die-cast aluminum

Shades

10" Angled Dome Shade

Gooseneck Arm Style

Style 4, GSARM4B

Lens

Frosted polycarbonate lens

Gaskets

O-ring silicone

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
