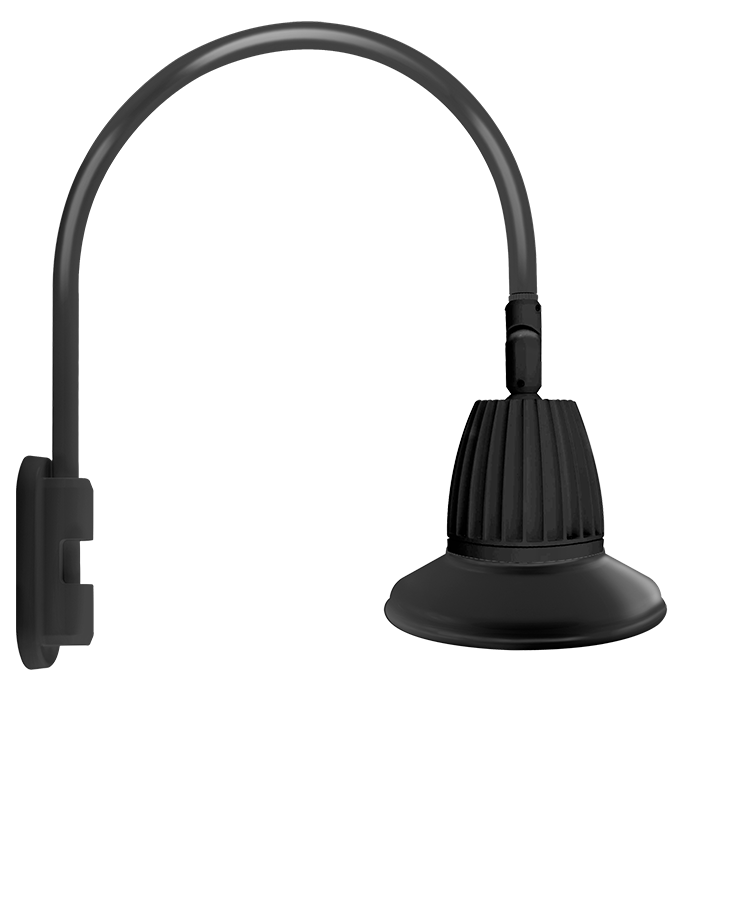

GN5LED13NST11B

Spec Sheet IES File LM79 Instructions Spec Sheet EZ Layout

GN5LED13NST11B

Adjustable 45° swivel joint

Superior heat sink

Die-cast aluminum housing

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	13W
Color Temp	4000K (Neutral)
Lumens	577 lm
Efficacy	38 lm/W
Color Accuracy	86 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.3A
208V	0.3A
240V	0.3A
277V	0.15A
Input Watts	15.2W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 16.0 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for mounting within 4ft (1.2m) of the ground.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 75W Incandescent, 50W Metal Halide or 18W CFL

Construction

Fixture

The GN5LED13NST11B comes with the GOOSE5B arm

Housing

Precision die-cast aluminum housing, lens frame and mounting plate

Gaskets

High-temperature Silicone

Mounting

Heavy-duty mounting arm with "O" ring seal and stainless steel screw

Cold Weather Starting

The minimum starting temperature is -40°C (-40°F)

Shades

11" Straight Shade offered

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

LED Characteristics

LED

Single multi-chip, 13W high-output, long-life LED

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

Driver

Constant Current, Class 2, 100-277V, 50/60 Hz, 100-240VAC 0.3 - 0.15A, 277VAC 0.15A, THD ≤20%, PF 97.5%.

Surge Protection

4kV

Other

Patents

The design of the Gooseneck is protected by patents pending in US, Canada, China and Taiwan

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Buy American Act Compliance

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
