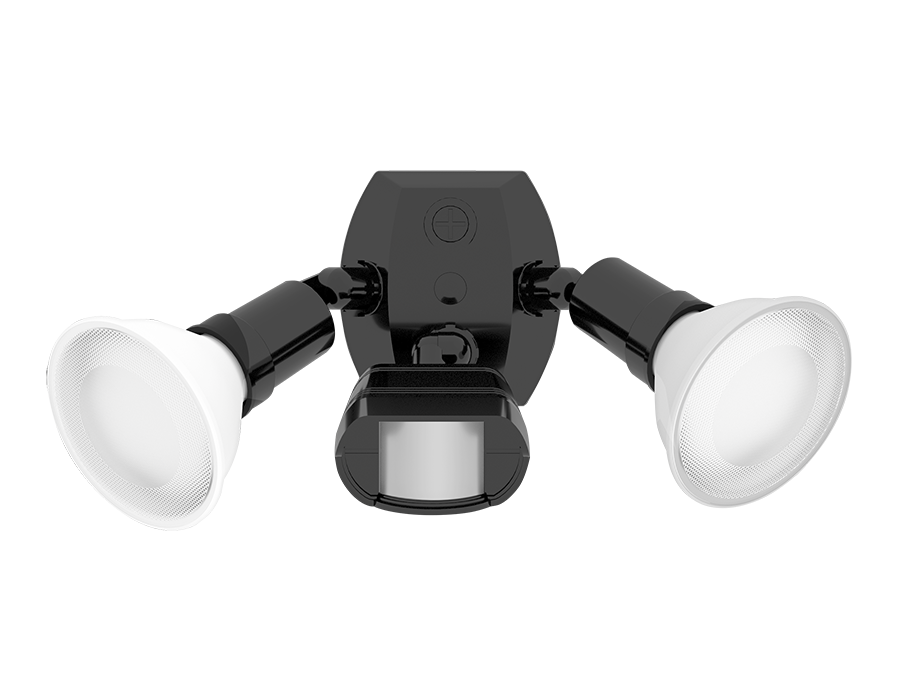

GT500R/L

Spec Sheet IES File Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

GT500R/L

Two CCT-Selectable PAR38s

110° view sensor

6 Hour protected manual override

EZ Plate Universal cover fits all boxes

View Technical Specs

View Price & Availability

Performance

Watts	38W
Color Temp	3000/4000/5000K
Lumens	3,600 lm
Efficacy	95
Color Accuracy	90 CRI
L70 Lifespan	15,000 Hours

Type	Constant Current
120V
208V
240V
277V
Input Watts	38W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 1.8 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

Electrical

Voltage

120V

Power Consumption

Surge Protection

Withstands up to 6000 volts

Switching Capacity

600W @ 120VAC Electronic Ballast (LED)

Wall Switch Manual Override

Two flip logic prevents activation by momentary power outages. Stays on for 6 hours. No extra wiring needed.

Sensor Settings

Time Adjustment

5 seconds to 15 minutes

Detector Sensitivity

Adjustable from 50%% to 100%

Sensor Housing

Made of tough, corrosion resistant polycarbonate

Detection

110° view

Other

5-Year Limited Warranty (Sensor)

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

3-Year, No-Compromise Warranty (Lamp)

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
