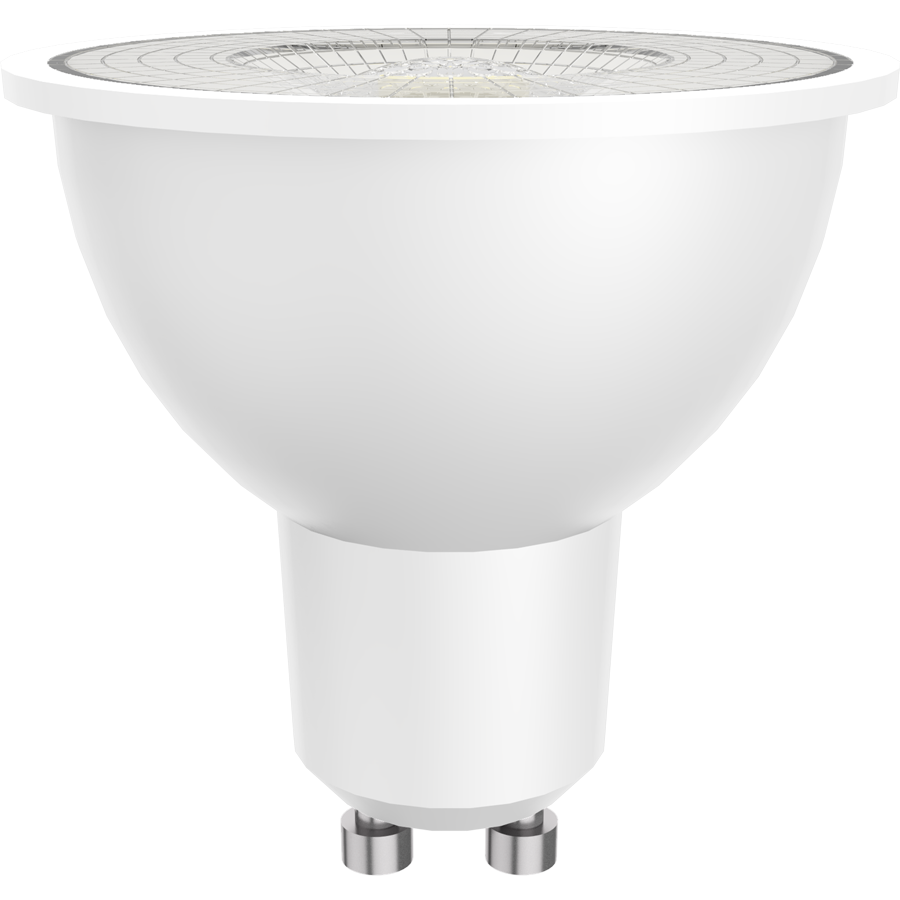

GU10-4.5-840-35D-DIM

Spec Sheet Photometrics Report FCC Caution Family Spec Sheet Spec Sheet

Energy efficient replacement for incandescent and halogen Small diameter reflectors

Constructed from durable materials which lowers risk of breakage

Rated for use in enclosed and open fixtures in dry or damp locations

Single optic and full face lens for precise beam angle control

Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs

View Technical Specs

View Price & Availability

Performance

Watts	4W
Color Temp	4000K
Lumens	350 lm
Efficacy	78
Color Accuracy	80 CRI
L70 Lifespan	15,000 Hours

Input Voltage	120V
Power Factor	>0.7
Flicker	N/A
THDi	N/A

Dimensions

Weight: 0.1 lbs

Technical Specifications

Performance

Wattage Equivalency

35W Halogen

Input Wattage

4.5W

Lumens (Nominal)

350lm

Efficacy

78lm/W

L70 Lifespan

15,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current 120V 50/60 Hz; 120V: 45mA

THD

<85%

Power Factor

0.7

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120V

Construction

Operating Temperature Range

-4°F - 104°F (-20°C - 40°C)

Shape

GU10

Finish

White

Enclosure Material

Polycarbonate

Lens Finish

Frosted

LED Characteristics

Color Temperature

4000K

Color Accuracy (CRI)

≥80 CRI

R9 Value

High color performance with R9 greater than 0

Color Consistency

<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Installation

Base Type

GU10 Bi-pin

Compliance

ETL Listed

This product has been tested by Intertek and found in compliance with accepted national standards.

Environment

Suitable for use indoors in dry and damp environments.

Fixture Rating

Suitable for use in enclosed fixtures

Energy Star Approved

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Not Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
