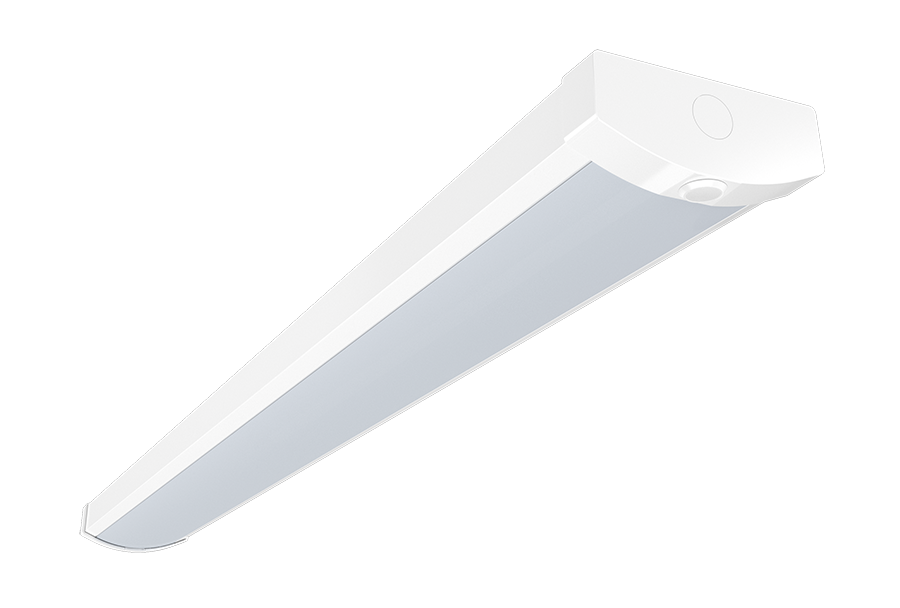

GUS17-4/MVS
- 50,000-Hour LED lifespan
- 0-10V dimming standard
- DLC Listed
- 5-Year, limited warranty
Performance
| Watts | 50/40/30W |
| Color Temp | 3500K/4000K/5000K |
| Lumens | 3,662-5,873 lm |
| Efficacy | 115.4-128.1 lm/W |
| Color Accuracy | 82-86 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.42A/0.34A/0.25A |
| 208V | 0.25A/0.20A/0.15A |
| 240V | 0.22A/0.17A/0.13A |
| 277V | 0.19A/0.15A/0.11A |
| Input Watts | 50/40/30W |
Dimensions
Weight: 3.8 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
50W/40W/30W (factory default 50W)
Color temperature selectable by 5000K, 4000K and 3500K (factory default 4000K)
50W/40W/30W (factory default 50W)
Color temperature selectable by 5000K, 4000K and 3500K (factory default 4000K)
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-OZBJQS (Low-Bay Luminaires for Commercial and Industrial Buildings)
DLC Product Code: S-Y281AB (Direct Linear Ambient Luminaires)
DLC Product Code: S-OZBJQS (Low-Bay Luminaires for Commercial and Industrial Buildings)
DLC Product Code: S-Y281AB (Direct Linear Ambient Luminaires)
Electrical
Driver
Constant Current, Class 2, Class P, 120-277V, 50/60 Hz
50W: 120V: 0.42A, 208V: 0.25A, 240V: 0.22A, 277V: 0.19A
40W: 120V: 0.34A, 208V: 0.2A, 240V: 0.17A, 277V: 0.15A
30W: 120V: 0.25A, 208V: 0.15A, 240V: 0.13A, 277V: 0.11A
50W: 120V: 0.42A, 208V: 0.25A, 240V: 0.22A, 277V: 0.19A
40W: 120V: 0.34A, 208V: 0.2A, 240V: 0.17A, 277V: 0.15A
30W: 120V: 0.25A, 208V: 0.15A, 240V: 0.13A, 277V: 0.11A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
6.6% at 120V, 14.51% at 277V
Power Factor
99.56% at 120V, 95.91% at 277V
Surge Protection
L-N: 1KV
L/N-PG: 2KV
L/N-PG: 2KV
Performance
Lifespan
50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
50W: Replaces up to (3) F32T8
40W: Replaces up to (2) F32T8
30W: Replaces up to (2) F32T8
40W: Replaces up to (2) F32T8
30W: Replaces up to (2) F32T8
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting
The minimum starting temperature is -20°C (-4°F)
Ambient Temperature
Max Power Temp Rating: 45°C (113°F)
Middle Power Temp Rating: 48°C (119°F)
Low Power Temp Rating: 53°C (127°F)
Middle Power Temp Rating: 48°C (119°F)
Low Power Temp Rating: 53°C (127°F)
Housing
Color coated steel sheets
Lens
Polycarbonate lens
Mounting
Surface mount. Can be mounted with v-hooks (ordered separately).
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Sensor Specifications
Operating Voltage
12V DC
Opearting Current
≤25mA
Output
Dim/0-10V
Microwave Frequency
5.8GHz±75MHz
Microwave Power
<0.3mW
Stand-by Power
≤0.5W
Detection Area
25%/50%/75%/100%
Hold Time
5s/30s/1min/3min/5min/10min/20min/30min
Daylight Threshold
2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Stand-by Period
0s/10s/30s/1min/5min/10min/30min/+∞
Stand-by Dimming Level
10%/20%/30%/50%
Operating Temperature
-20°C~+60°C
Mounting Height
Max 12m/39.37ft. Ceiling Mounted
Detection Range
Max 14m/45.92 ft Ceiling Mounted
Motion Detection
0.5~1.5m/s
Lux On-Off
Adopted dual PD technology. GUS17-MVS is able to differenciate artificial light brightness from natural light after installed inside.
Remote Control Accessory
Adjust settings using remote control (catalog# MSR1). Only available with 0-10V dimming driver options. Remote control available here.
Other
5 Yr Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
