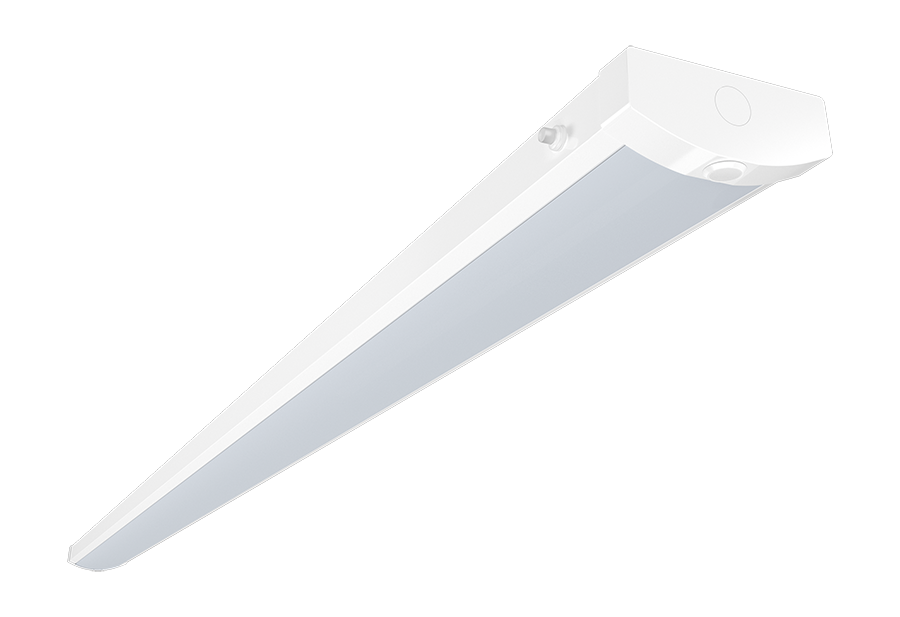

GUS17-8/LCBS/MVS/E

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

GUS17-8/LCBS/MVS/E

50,000-Hour LED lifespan

0-10V dimming standard

DLC Listed

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	90/80/70W
Color Temp	3500/4000/5000K
Lumens	9,177-12721 lm
Efficacy	130.5-141.3 lm/W
Color Accuracy	84-86 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.83A/0.73A/0.64A
208V	0.47A/0.42A/0.37A
240V	0.41A/0.36A/0.32A
277V	0.35A/0.31A/0.27A
Input Watts	70-90W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 6.2 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
90W/80W/70W (factory default 90W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Electrical

Driver

Constant Current, Class 2, Class P, 120-277V, 50/60 Hz
90W: 120V: 0.83A, 208V: 0.47A, 240V: 0.41A, 277V: 0.35A
80W: 120V: 0.73A, 208V: 0.42A, 240V: 0.36A, 277V: 0.31A
70W: 120V: 0.64A, 208V: 0.37A, 240V: 0.32A, 277V: 0.27A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

3.9% at 120V, 11.3% at 277V

Power Factor

99.4% at 120V, 92.0% at 277V

Surge Protection

L-N: 1 kV
L/N-PG: 2 kV

Battery Backup

Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.

Battery Backup Light Loss Factor

25W: 0.15
20W: 0.18
14W: 0.25

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

LED Characteristics

LEDs

Long-life, high-efficiency, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Maximum Ambient Temperature

Suitable for use in up to 122°F (50°C)

Housing

Color coated steel sheets

Lens

Polycarbonate lens

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Surface mount. Can be mounted with v-hooks (ordered separately).

Lightcloud

Lightcloud Blue Sensor Installed

Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.

DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)

Learn more at www.rablighting.com/feature/new-lightcloud-blue.

Sensor Settings

Operating Voltage

12V DC

Operating Current

≤25mA

Output

Dim/0-10V

Microwave Frequency

5.8GHz±75MHz

Microwave Power

<0.3mW

Stand-by Power

≤0.5W

Detection Area

25%/50%/75%/100%

Hold Time

5s/30s/1min/3min/5min/10min/20min/30min

Daylight Threshold

2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable

Stand-by Period

0s/10s/30s/1min/5min/10min/30min/+∞

Stand-by Dimming Level

10%/20%/30%/50%

Operating Temperature

-20°C~+60°C

Mounting Height

Max 12m/39.37 ft. Ceiling Mounted

Detection Range

Max 14m/45.92 ft Ceiling Mounted

Motion Detection

0.5~1.5m/s

Lux On-Off

Adopted dual PD technology. HAZMVS is able to differenciate artificial light brightness from natural light after installed inside.

Remote Control Accessory

Adjust settings using remote control (catalog# MSR1). Only available with 0-10V dimming driver options. Remote control available here.

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
