GUS4

Spec Sheet Instructions Spec Sheet

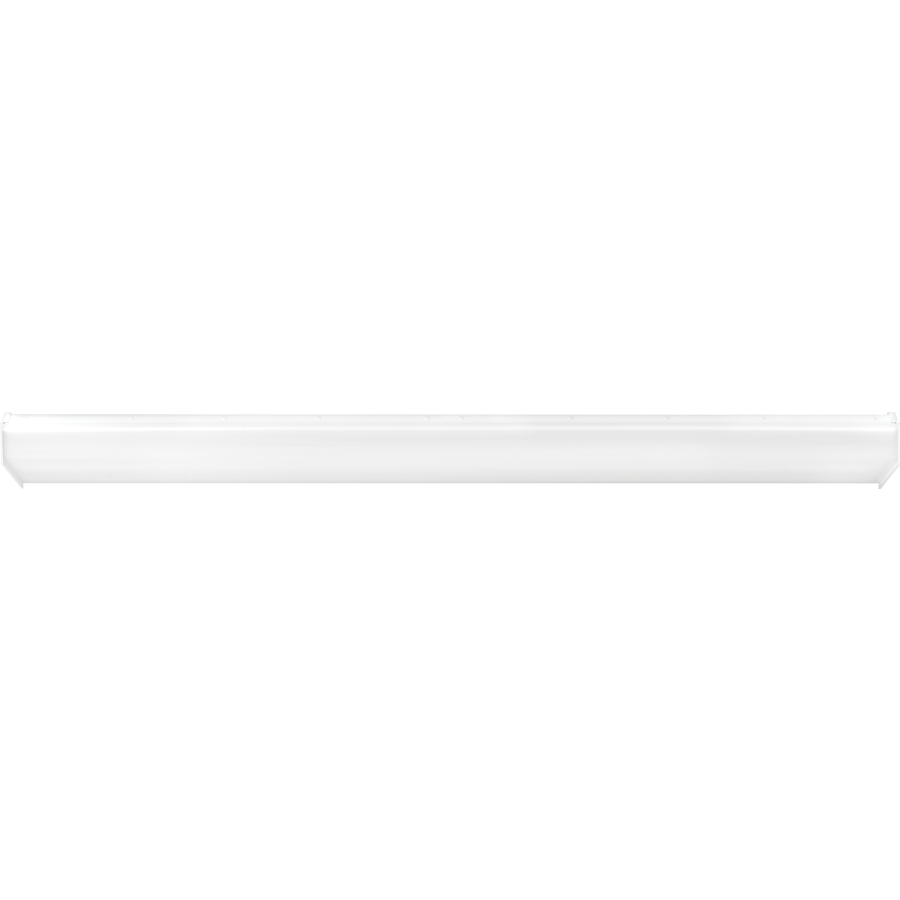

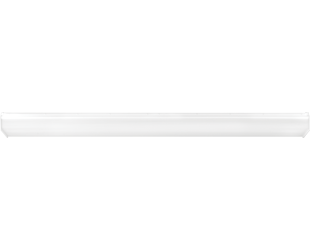

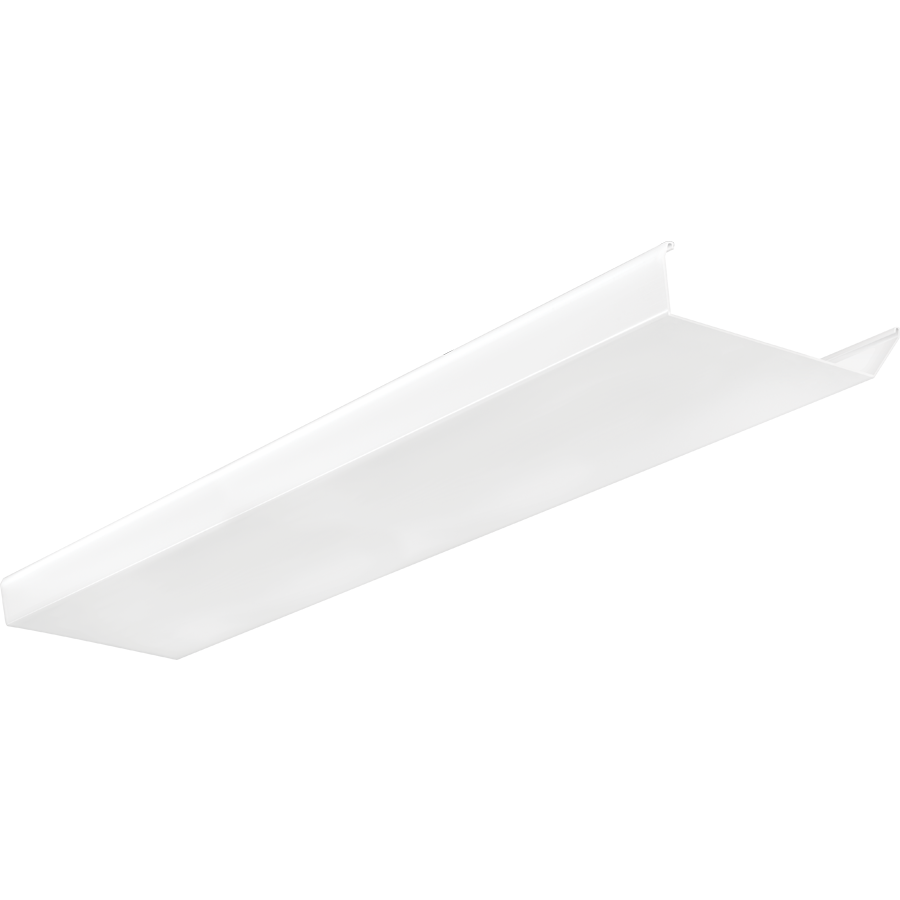

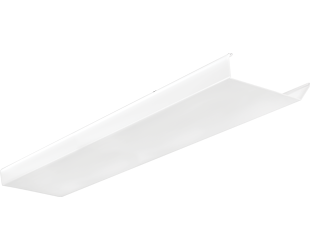

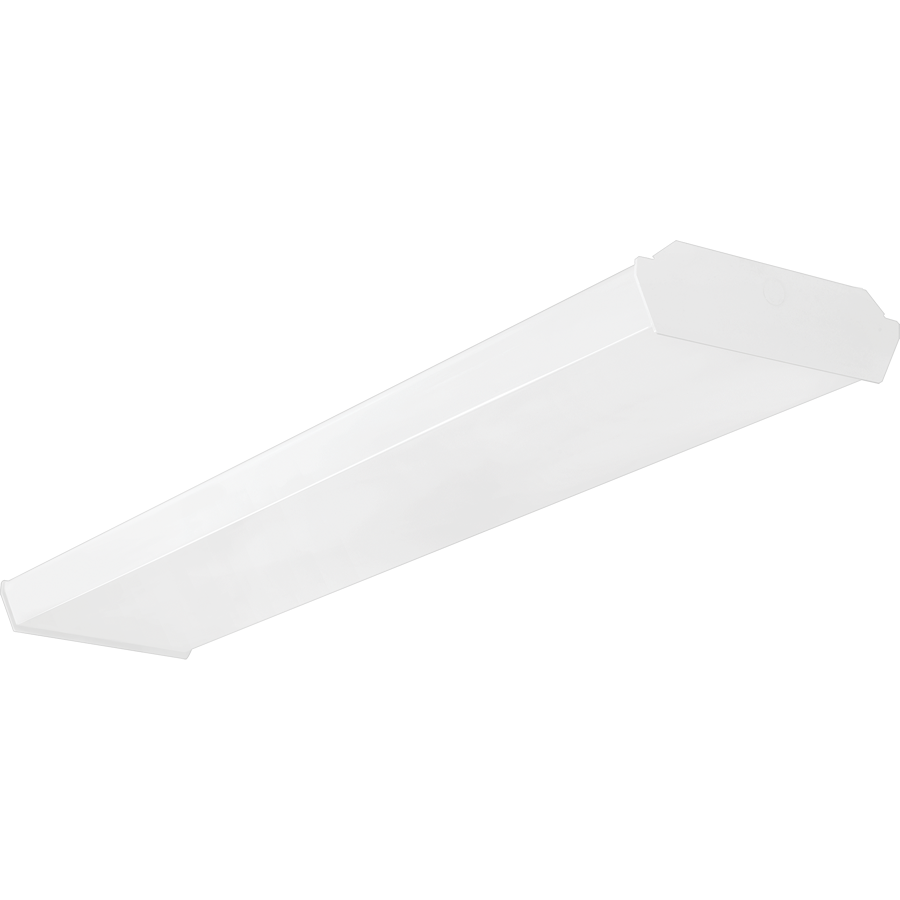

GUS4

Affordable, easy to use LED wrap fixture

0-10V dimming, standard

50,000-Hour LED lifespan

View Technical Specs

View Price & Availability

Performance

Watts	44/33/22W
Color Temp	3500/4000/5000K
Lumens	3,105-6,191 lm
Efficacy	134.8-145.3 lm/W
Color Accuracy	84-85 CRI
L70 Lifespan	50,000 Hours

Type	Constant
120V	0.38A/0.28A/0.18A
208V	0.24A/0.19A/0.014A
240V	0.21A/0.16A/0.11A
277V	0.16A/0.13A/0.09A
Input Watts	22.5-45.1W

Dimensions

Weight: 8.9 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
4ft: 40/30/20(factory default 40W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Electrical

Driver

44W: Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.38A, 208V: 0.24A, 240V: 0.21A, 277V: 0.16A

33W: Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.28A, 208V: 0.19A, 240V: 0.16A, 277V: 0.13A

22W: Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.18A, 208V: 0.14A, 240V: 0.11A, 277V: 0.09A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

5.82% at 120V, 9.99% at 277V

Power Factor

99.7% at 120V, 96.2% at 277V

Surge Protection

DM: 1 kV
CM: 2 kV

Performance

Lifespan

50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
