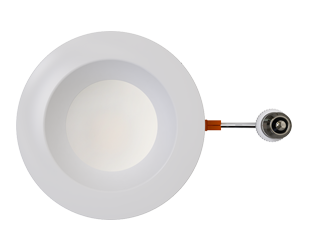

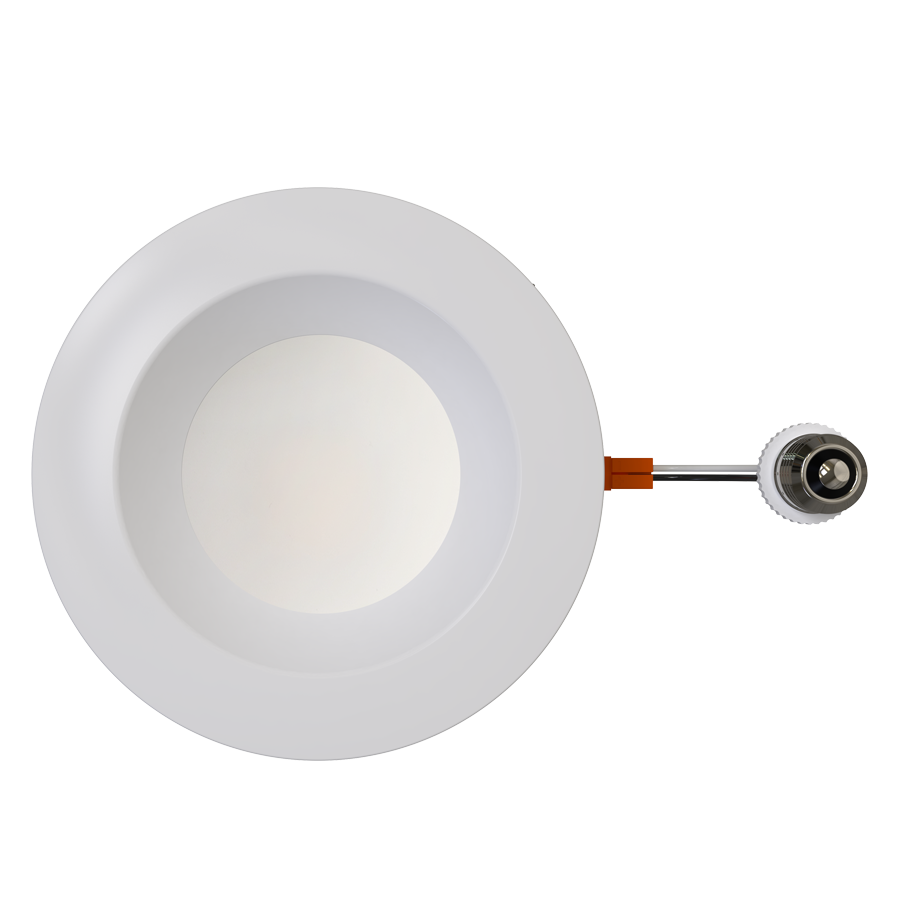

R34-4

Use to replace traditional halogen and incandescent light sources

5 color temperature selectable 2700/3000/3500/4000/5000K

Compatible with most standard recessed housings

E26 Edison base adapter included

Anti-UV plastic extends the life of the housing

View Technical Specs

View Price & Availability

Performance

Watts	7W
Color Temp	2700/3000/3500/4000/5000K
Lumens	700 lm
Efficacy	93.3
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.08A
208V
240V
277V
Input Watts	7.5W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.2 lbs

Technical Specifications

Performance

Product Type

Recessed Retrofit

Description

Economical recessed retorfit, ideal for applications with more economical needs. Five field adjustable color temperatures to quickly and easily choose from.

Wattage Equivalency

60W Incandescent

Input Wattage

7.5W

Lumens

2700K @ 739lm; 3000K @ 751lm; 3500K @ 754lm; 4000K @ 733lm; 5000K @ 725lm

Efficacy

2700K @ 99lm/W; 3000K @ 100lm/W; 3500K @ 101lm/W; 4000K @ 98lm/W; 5000K @ 97lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current, 60 Hz, 120V, 120V: 0.08A

Power Factor

≥0.7

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120V

Operating Frequency

60 Hz

Input Current @ 120V (mA)

80mA

Operating Temperature

-13°F to 104°F (-25°C to 40°C)

Flicker

≤30%

LED Characteristics

Beam Angle

90°

Color Temperature

Field adjustable via dip switch 2700/3000/3500/4000/5000K

Color Accuracy (CRI)

>90 CRI

R9 Value

High color performance with R9 greater than or equal to 50

Color Consistency

4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Recessed Housing

Base Type

E26 Edison

Construction

Size

Shape

Round

Enclosure Material

Plastic

Trim Style

Smooth

Lens

Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications

Cut Out Template Size

4 5/16"

Compliance

Listings

UL Classified

Environment

Suitable for use in dry, damp, and wet environments.

UV Rated

Suitable for exposure to direct sunlight

IC Rated

Air Tight

Certification Model Number

DLR0141(R34-4)

T20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS Compliant

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Energy Star Approved

ENERGY STAR® Version 1.0 Certified

Energy Star ID

3478097

Other

Accessories

DLTRIM/R4RS-BN-L
4" Brushed nickel trim round smooth
DLTRIM/R4SB-BRZ-L
4" Bronze trim round smooth
DLTRIM/R4RS-B-L
4" Black trim round smooth
NDCANIC4R
4" New construction housing
RDCANIC4R
4" Retrofit housing

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
