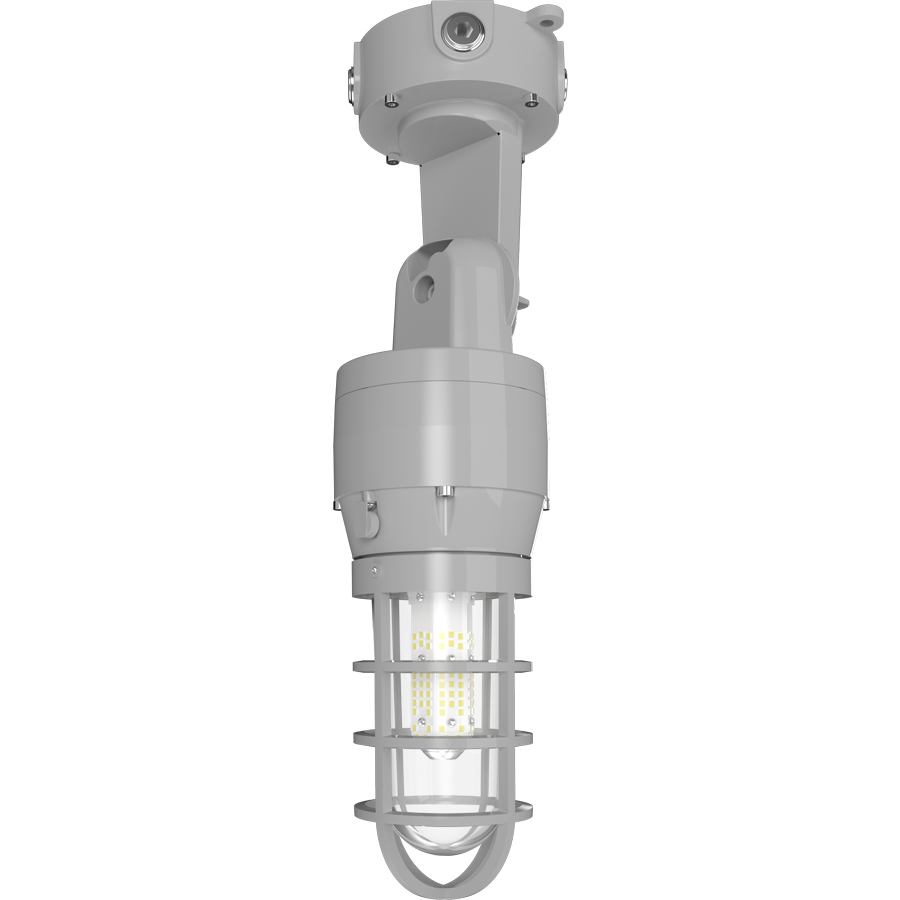

HAZVX30/E

UL 1598 and 844

IP66 Rating protects against dust & water ingress<

100,000-Hour LED lifespan

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	30W
Color Temp	5000K
Lumens	3,869 lm
Efficacy	125.2
Color Accuracy	81 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.32A
208V	0.19A
240V	0.17A
277V	0.16A
Input Watts	30.9W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 18.7 lbs

Technical Specifications

Hazardous Location Classifications

UL 844

Electric lighting fixtures for use in hazardous (classified) locations

Class 1, Division 2 (Groups A, B, C, D)

Class 1 (Hazardous Material in Surrounding Atmosphere):
Flammable vapors or gases may be present

Division 2 (Presence of Hazardous Materials):
Ignitable concentrations of hazards exist only under accidental system breakdowns or abnormal operating conditions

Groups A, B, C, D (Hazardous Material in Surrounding Atmosphere):
A = Acetylene
B = Hydrogen, butadiene, ethylene oxide, propylene oxide and acrolein
C = Ethylene, cyclopropane and ethyl ether
D = Acetone, ammonia, benzene, butane, ethanol, gasoline, hexane, methane, methanol, naphta, natural gas, propane & toluene

UL 1598

Electric lighting fixtures for use in non-hazardous locations

UL 1598A

UL 1598A includes requirements for materials that can withstand exposure to saltwater, humidity, and other corrosive elements.

UL 8750

Light Emitting Diode (LED) Light Sources for Use in Lighting Products

Construction

IK Rating

IK08 Protected against 5 joules of impact. Equivalent to the impact of a 3.75 lbs. (1.7kg) mass dropped from 11.8" (300mm) above the impacted surface.

Cold Weather Starting

The minimum starting temperature is 0°C (32°F)

Maximum Ambient Temperature

Suitable for use in up to 122°F (50°C)

Housing

Aluminum

Lens

Glass

Gaskets

High-temperature silicone

Green Technology

Mercury and UV free. RoHS-compliant components.

Finish

Formulated for high durability and long-lasting color

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.

IP Rating

Ingress protection rating of IP66 for dust and water

Electrical

Driver

Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 0.32A, 208V: 0.19A, 240V: 0.17A, 277V: 0.16A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

2.89% at 120V, 7.52% at 277V

Power Factor

99.4% at 120V, 90.1% at 277V

Surge Protection

L-N:1 kV
L/N-FG:2 kV

Aux Power Supply

Dim to Off

Yes

Installation

Mounting

Ceiling mount with rotating cap

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Color Consistency

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
