• Replacement for traditional Metal Halide or High Pressure Sodium HID Lamps
  • Active Cooling: Internal sensor overheat and engaged will automatically reduce output to 70% rated wattage until the sensor cools and will light up again to 100%
  • Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
  • Rated for use in enclosed and open fixtures in dry or damp locations
  • 4kV surge protection built in
  • 50,000 hour Lifespan
  • Environmentally friendly, no mercury used
  • UL Listed, UL Classified
  • Non-Dimmable
  • 5 Year No Compromise Warranty
View Technical Specs
Performance
Watts 100W
Color Temp 3000K (Warm White)
Lumens 13,000 lm
Efficacy 130 lm/W
Color Accuracy 80 CRI
L70 Lifespan 50,000 Hours
Input Voltage 100-277V
Power Factor 0.9
Flicker <30%
THDi N/A
Dimensions

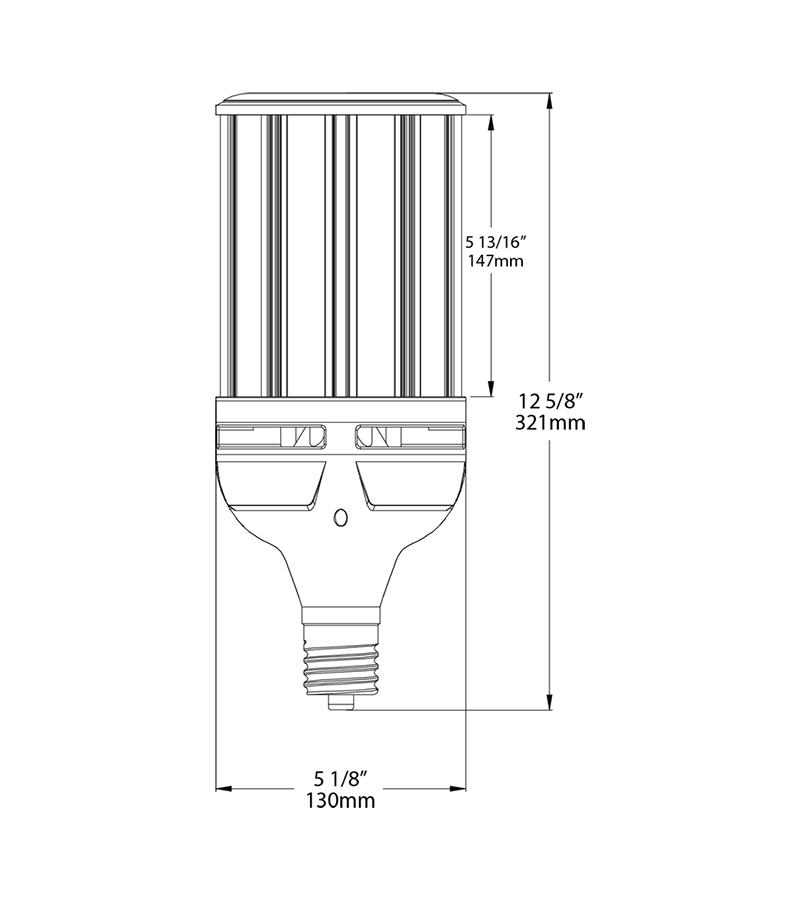

Link to Dimension Drawing

Weight: 4.5 lbs

Technical Specifications
Performance
Product Type
HID Replacement
Input Wattage
100W
Wattage Equivalency
400W HID
Lumens
13,000lm
Efficacy
130lm/W
L70 Lifespan
50,000 Hours
Construction
Shape
Post Top
For Use Outdoors in Open Fixtures
Yes
LED Characteristics
Color Temperature
3000K Warm White
Color Accuracy (CRI)
80 CRI
Beam Angle
360°
Installation
Base Type
EX39
Installation Type
Type B, Ballast Bypass
Installation Orientation
For Vertical Installation Only
Electrical
THD
<20%
Power Factor
0.9
Operating Temperature
-30°C to 60°C
Dimmable
No
Input Voltage
100-277V
Operating Frequency
50/60Hz
Flicker
<30%
Compliance
UL Listed
Yes
UL Classified
Yes
California Energy Commission (CEC) Status
Lawful for Sales in California
