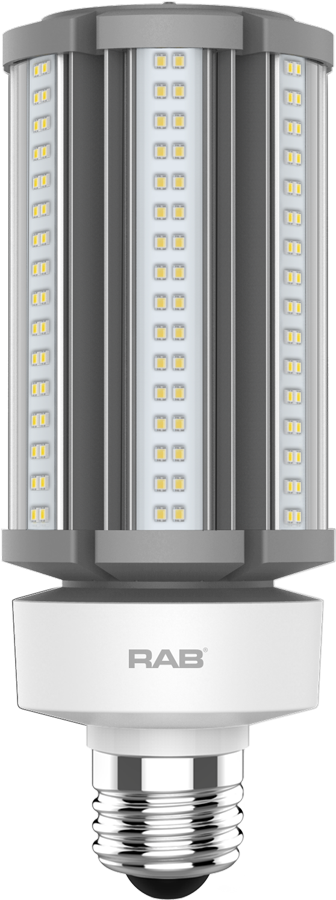

HID-45-E26-840-BYP-PT

Spec Sheet LM79 Instructions FCC Caution Spec Sheet

Replacement for traditional Metal Halide or High Pressure Sodium HID Lamps

Active Cooling: Internal sensor overheat and engaged will automatically reduce output to 70% rated wattage until the sensor cools and will light up again to 100%

Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast

Rated for use in enclosed and open fixtures in dry or damp locations

4kV surge protection built in

50,000 hour Lifespan

Environmentally friendly, no mercury used

UL Listed, UL Classified

Non-Dimmable

5 Year No Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	45W
Color Temp	4000K (Cool White)
Lumens	6,800 lm
Efficacy	151.1 lm/W
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Input Voltage	100-277V
Power Factor	0.9
Flicker	<30%
THDi	N/A

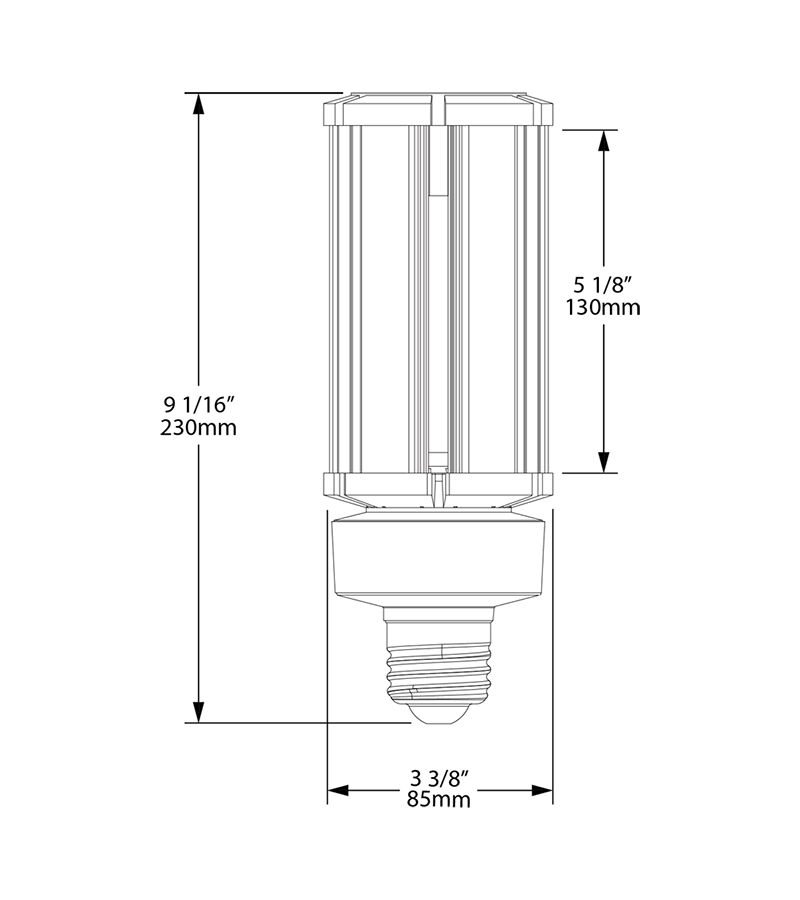

Dimensions

Weight: 1.6 lbs

Technical Specifications

Performance

Product Type

HID Replacement

Input Wattage

45W

Wattage Equivalency

175W HID

Lumens

6,800lm

Efficacy

151lm/W

L70 Lifespan

50,000 Hours

Construction

Bulb Shape

Post Top

For Use Outdoors in Open Fixtures

Yes

LED Characteristics

Color Temperature

4000K Cool White

Color Accuracy (CRI)

80 CRI

Beam Angle

360°

Installation

Base Type

E26 Edison

Installation Type

Type B, Ballast Bypass

Installation Orientation

Universal Installation

Electrical

THD

<20%

Power Factor

0.9

Operating Temperature

-30°C to 60°C

Dimmable

Input Voltage

100-277V

Operating Frequency

50/60Hz

Flicker

<30%

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Compliance

UL Listed

Yes

UL Classified

Yes

California Energy Commission (CEC) Status

Lawful for Sales in California
