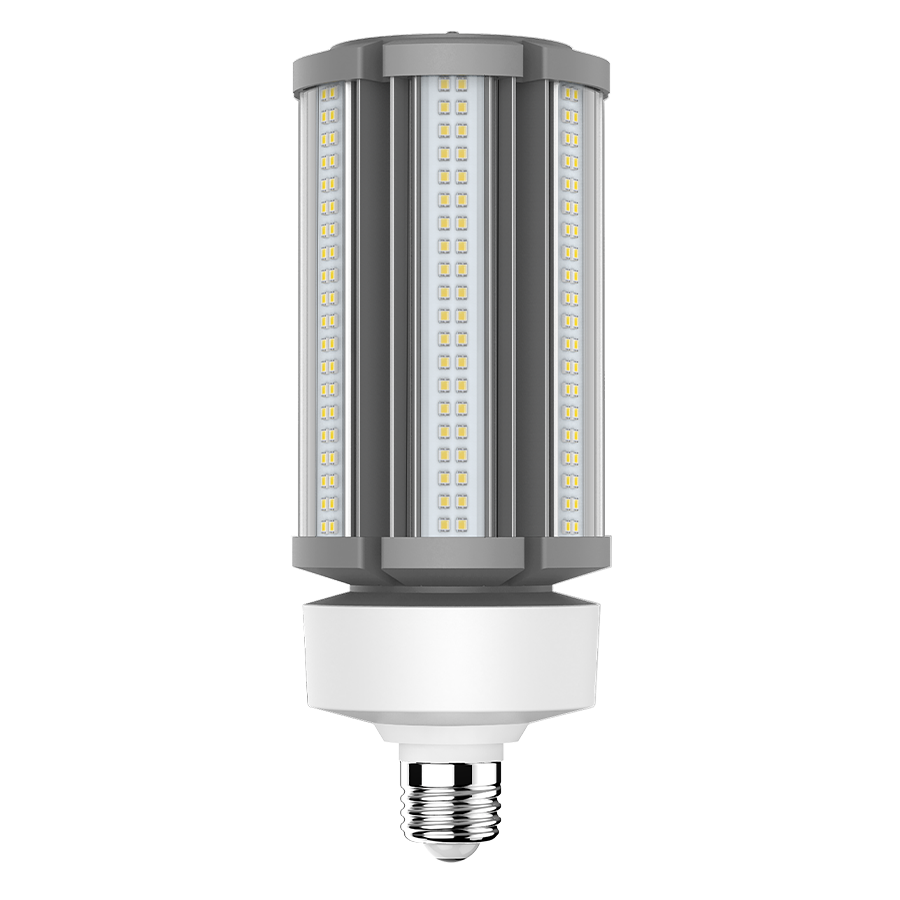

HID-54-E26-830-BYP-PT
HID-54-E26-830-BYP-PT
- Replacement for traditional Metal Halide or High Pressure Sodium HID Lamps
- Active Cooling: Internal sensor overheat and engaged will automatically reduce output to 70% rated wattage until the sensor cools and will light up again to 100%
- Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Rated for use in enclosed and open fixtures in dry or damp locations
- 4kV surge protection built in
- 50,000 hour Lifespan
- Environmentally friendly, no mercury used
- UL Listed, UL Classified
- Non-Dimmable
- 5 Year No Compromise Warranty
Performance
| Watts | 54W |
| Color Temp | 3000K |
| Lumens | 7,600 lm |
| Efficacy | 140 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 100-277V |
| Power Factor | >0.9 |
| Flicker | N/A |
| THDi | <20% |
Dimensions
Weight: 1.6 lbs
Technical Specifications
Performance
Product Type
HID Replacement
Input Wattage
54W
Lumens
7,600lm
Efficacy
140lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
200W
LED Characteristics
Color Accuracy (CRI)
80
Color Temperature
3000K
Beam Angle
360°
Construction
Bulb Shape
Post Top
Enclosure Material
Polycarbonate & Metal heat sink
Housing Finish
White
Installation
Base Type
E26 Edison
Installation Method
UL Type B, Ballast Bypass
Burning Position
Universal
Electrical
THD
<20%
Power Factor
>0.9
Input Voltage
100-277V
Operating Frequency
60 Hz
Operating Temperature
-30°C to 60°C
Surge Protection
4 kV
Other
Technology EQ
Metal Halide or High Pressure Sodium
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
Listings
UL Listed, UL Classified
Environment
Damp / Enclosed
IP Rating
IP64
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Certification Model Number
H10031(HID-54-E26-830-BYP-PT)
