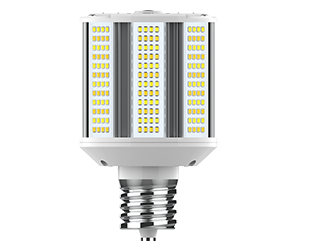

HIDFA-20S-H-EX39-8CCT-BYP

Spec Sheet Instructions FCC Caution Spec Sheet

Replaces traditional metal halide or high pressure sodium HID lamp

Adjustable wattage and CCT allows for in-field customization

Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast

Rated for use in enclosed fixtures in dry or damp locations

4kV surge protection built in

50,000-Hour lifespan

Environmentally friendly, no mercury used

UL Listed, DLC Listed (select models)

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	5/10/20W
Color Temp	3000/4000/5000K
Lumens	800/1600/3200 lm
Efficacy	160
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Input Voltage	100-277V
Power Factor	>0.9
Flicker	<30%
THDi	<20%

Dimensions

Weight: 1.3 lbs

Technical Specifications

Performance

Product Type

HID Replacement

Input Wattage

5W/10W/20W

Lumens

800/1,600/3,200lm

Efficacy

160lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Wattage Equivalency

100W Metal Halide or High Pressure Sodium

Compliance

UL Listed

Suitable for damp locations

Enclosed Fixtures

Suitable for use in enclosed fixtures

LED Characteristics

Color Temperature

3000/4000/5000K

Color Accuracy (CRI)

>80 CRI

Beam Angle

180°

Electrical

THD

<20%

Power Factor

>0.9

Dimmable

Yes

Flicker

<30%

Operating Temperature

-30°C to 60°C

Input Voltage

100-277V

Operating Frequency

50/60Hz

Construction

Bulb Shape

Wall Pack

Endcap Material

Metal

Enclosure Material

Polycarbonate

Installation

Base Type

EX39

Installation Orientation

Horizontal

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
