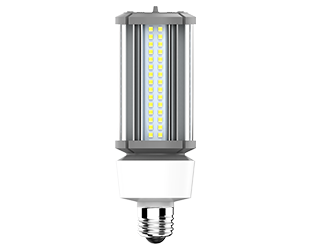

HIDFA-27S-E26-850-BYP
HIDFA-27S-E26-850-BYP
- Replaces traditional metal halide or high pressure sodium HID lamp
- Adjustable wattage and CCT allows for in-field customization
- Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Rated for use in enclosed fixtures in dry or damp locations
- 4kV surge protection built in
- 50,000-Hour lifespan
- Environmentally friendly, no mercury used
- UL Listed, DLC Listed (select models)
- 5-Year, No-Compromise Warranty
Performance
| Watts | 12W |
| Color Temp | 5000K |
| Lumens | 1740/2610/3915 lm |
| Efficacy | 145 |
| Color Accuracy | 87 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 100-277V |
| Power Factor | >0.9 |
| Flicker | <30% |
| THDi | <20% |
Dimensions
Weight: 0.8 lbs
Technical Specifications
Performance
Product Type
HID Replacement
Input Wattage
12W/18W/27W
Lumens
1,740/2,610/3,915lm
Efficacy
145lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Wattage Equivalency
125W Metal Halide or High Pressure Sodium
Compliance
UL Listed
Suitable for damp locations
Enclosed Fixtures
Suitable for use in enclosed fixtures
LED Characteristics
Color Temperature
5000K
Color Accuracy (CRI)
>80 CRI
Beam Angle
360°
Electrical
THD
<20%
Power Factor
>0.9
Dimmable
Yes
Flicker
<30%
Operating Temperature
-30°C to 60°C
Input Voltage
100-277V
Operating Frequency
50/60Hz
Construction
Bulb Shape
Post Top
Endcap Material
Metal
Enclosure Material
Polycarbonate
Installation
Base Type
E26 Edison
Installation Orientation
Vertical and Horizontal
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
