• 0-10V Dimming, standard
  • 100,000-Hour LED lifespan
View Technical Specs
Performance
Watts 67W
Color Temp 4000K (Neutral)
Lumens 7,972 lm
Efficacy 117.8 lm/W
Color Accuracy 73 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V
208V
240V
277V
Input Watts 67.7W
Dimensions
Link to Dimension Drawing

Weight: 12.5 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80
Title 24 Compliant
An IVELOT edge-lit area light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,v)
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-U0WJNB
Electrical
Driver
Class 2, 50/60Hz, 480V 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
13.6% at 480V
Power Factor
95.5% at 480V
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs

Recently Viewed Products

 This is a link to the product ALED3T105W/480/7PR ALED3T105W/480/7PR
Arealights 12554 Lumens Aled Type Iii 8In Pole Arm 5000K 105W 480V 7-Pin Receptacle White
 This is a link to the product ALED2T125NRG/480/WS2 ALED2T125NRG/480/WS2
Arealights 15329 Lumens Aled Type Ii 8In Pole Arm 4000K 125W 480V Multi-Level Sensor With 20 Feet Lens Roadway Gray
 This is a link to the product ALED2T78SFW/480/7PR ALED2T78SFW/480/7PR
Arealights 9866 Lumens Aled Type Ii Slipfitter 5000K 78W 480V 7-Pin Receptacle White

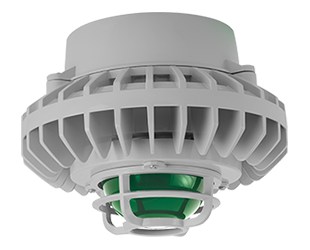

 This is a link to the product HAZPLED80FG-DG HAZPLED80FG-DG
