• 0-10V Dimming, standard
  • 100,000-Hour LED lifespan
View Technical Specs
Performance
Watts 38W
Color Temp
Lumens 4,687 lm
Efficacy 110.5 lm/W
Color Accuracy
L70 Lifespan
Type Constant Current
120V
208V
240V
277V
Input Watts 42.4W
Dimensions
Link to Dimension Drawing

Weight: 13.5 lbs

Technical Specifications
Lightcloud
Lightcloud Controller Installed
Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more at www.lightcloud.com
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80
Title 24 Compliant
An IVELOT edge-lit area light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,v)
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-BHYVCT
Electrical
Driver
Class 2, 50/60Hz, 480V 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
12.78% at 480V
Power Factor
96.2% at 480V

Recently Viewed Products

 This is a link to the product ALED3T105YW/480/D10 ALED3T105YW/480/D10
Arealights 11903 Lumens Aled Type Iii 8In Pole Arm 3000K 105W 480V 0-10V Dimming White
 This is a link to the product IVAT2-45LSF730WH/WSLC IVAT2-45LSF730WH/WSLC
Ivelot T2 40W 4500L Sf 3000K 70 Cri White 347-480V Dim Ws Lc
 This is a link to the product CDLED2PS-10W-WW940-S CDLED2PS-10W-WW940-S
Cylinders 629.6 Lumens Cdled 10W 2 Inches With Pendant Stem 90Cri 4000K Matte Silver

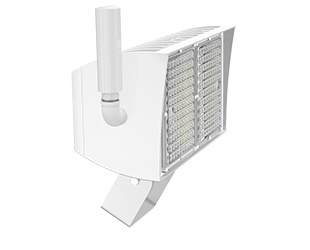

 This is a link to the product PIPXL100TYW/D10/LC PIPXL100TYW/D10/LC
