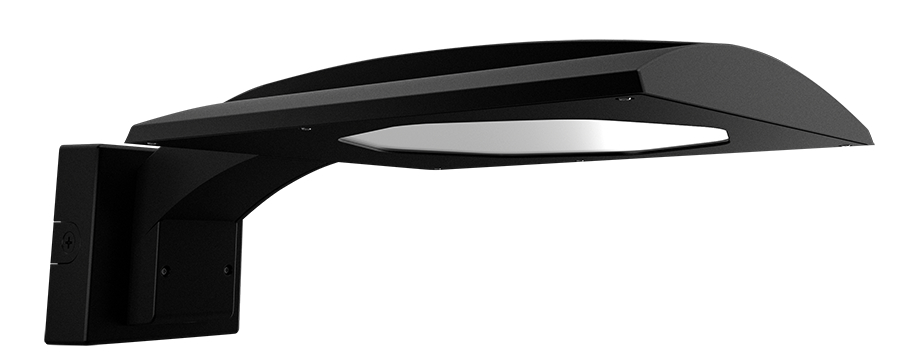

IVAT4-100LWM730KH
IVAT4-100LWM730KH large main
  • 0-10V Dimming, standard
  • 100,000-Hour LED lifespan
 View Technical Specs
View Price & Availability
Performance
Watts 94W
Color Temp 3000K (Warm)
Lumens 10,078 lm
Efficacy 105 lm/W
Color Accuracy 82 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V
208V
240V
277V
Input Watts 96W
Dimensions
Link to Dimension Drawing

Weight: 20.0 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80
Title 24 Compliant
An IVELOT edge-lit area light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,v)
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-MH6LZF
Electrical
Driver
Class 2, 50/60Hz, 480V 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
11.8% at 480V
Power Factor
97.1% at 480V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
