IVAT4-130LPA750GH/WS2LC
Performance
| Watts | 117W |
| Color Temp | |
| Lumens | 15,212 lm |
| Efficacy | 130.1 lm/W |
| Color Accuracy | |
| L70 Lifespan |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 116.9W |
Dimensions
Weight: 15.0 lbs
Technical Specifications
Lightcloud
Lightcloud Controller Installed
Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more at www.lightcloud.com
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80
Title 24 Compliant
An IVELOT edge-lit area light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,v)
IP Rating
Ingress protection rating of IP66 for dust and water
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-OE43TZ
DLC Product Code: S-OE43TZ
Electrical
Driver
Class 2, 50/60Hz, 480V 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
6.3% at 480V
Power Factor
93.5% at 480V
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations at 25°C
Wattage Equivalency
Equivalent to 450W Pulse Start Metal Halide
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Housing
Precision die-cast aluminum
IES Classification
The Type IV distribution is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semicircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.
Lens
Diffused Polymethyl Methacrylate (PMMA)
Effective Projected Area
EPA = 0.61
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Sensor Settings
Multi Level Motion Sensor
*40 ft diameter coverage from 20 ft height.
Handheld Wireless Configuration Tool
Adjust settings using handheld wireless configuration tool (catalog# WSREM). Only available with 0-10V dimming driver options. Handheld wireless configuration tool available here.
Installation
Mounting
Universal pole adapter
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products

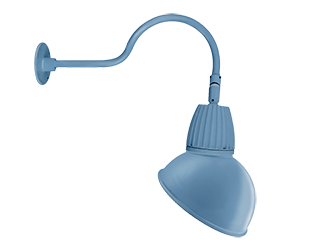

GN1LED26NSADLB
