IVAT5S-100LPA750KU/LC
Performance
| Watts | 94W |
| Color Temp | 5000K (Cool) |
| Lumens | 11,577 lm |
| Efficacy | 119.4 lm/W |
| Color Accuracy | 74 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.83A |
| 208V | 0.48A |
| 240V | 0.42A |
| 277V | 0.36A |
| Input Watts | 97W |
Dimensions
Weight: 15.0 lbs
Technical Specifications
Installed with Lightcloud
Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.
Learn MoreLightcloud
Lightcloud Controller Installed
Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more at www.lightcloud.com
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80
Title 24 Compliant
An IVELOT edge-lit area light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,v)
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-7O58RP
DLC Product Code: S-7O58RP
Electrical
Driver
Class 2, 50/60Hz, 120-277V, 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
4.7% at 120V, 8.5% at 277V
Power Factor
99.8% at 120V,96.9% at 277V
Recently Viewed Products
IVAT5S-100LPA750KU/LC
Arealights 11577 Lumens Ivelot Type V Square 100W 10000L Pole 5000K Warm 70Cri Black 120V-277V Dimmable Lightcloud
IVAT3-100LPA750ZH/WS2
Area Lights 11003 Lumens Ivat3 Type Iii 94W Universal Pole Mount 70Cri 5000K Bronze 347-480V 0-10V Dimming 20 Feet Lens Wattstopper Sensor

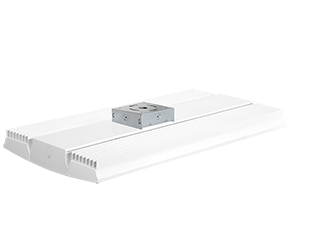

RAILP225NW/480/D10
