IVAT5S-100LSF750GU/WS
IVAT5S-100LSF750GU/WS large main
  • 0-10V Dimming, standard
  • 100,000-Hour LED lifespan
 View Technical Specs
View Price & Availability
Performance
Watts 94W
Color Temp 5000K (Cool)
Lumens 11,577 lm
Efficacy 119.4 lm/W
Color Accuracy 74 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.83A
208V 0.48A
240V 0.42A
277V 0.36A
Input Watts 97W
Dimensions
Link to Dimension Drawing

Weight: 13.5 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-M8IVLU
Electrical
Driver
Class 2, 50/60Hz, 120-277V, 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
4.7% at 120V, 8.5% at 277V
Power Factor
99.8% at 120V,96.9% at 277V
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Recently Viewed Products

This is a link to the product IVAT5S-100LSF750GU/WS IVAT5S-100LSF750GU/WS
Area Lights 11577 Lumens Ivat5S Type V Square 94W Slipfitter Mount 70Cri 5000K Roadway Gray 120V-277V 0-10V Dimming 8 Feet Lens Wattstopper Sensor
This is a link to the product IVAT4-130LSF730GH/7PRLC IVAT4-130LSF730GH/7PRLC
Ivelot T4 120W 13000L Sf 3000K 70 Cri Gray 347-480V Dim 7Pr Lc
This is a link to the product BOA8P-80D10-40N-S/E2 BOA8P-80D10-40N-S/E2

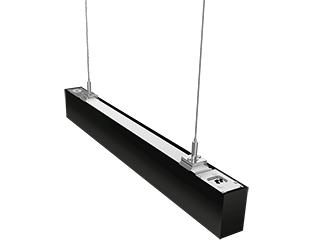

Architectural 5738 Lumens Boa 8 Ft 80W Pendant Mount 4000K 0-10V Dimming Battery Backup Matte Silver
