Performance
Watts 28W
Color Temp 3000K (Warm)
Lumens 3,789 lm
Efficacy 133.9 lm/W
Color Accuracy 71 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.24A
208V 0.14A
240V 0.12A
277V 0.11A
Input Watts 28.3W
Dimensions
Link to Dimension Drawing

Weight: 7.0 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IP Rating
Ingress protection rating of IP66 for dust and water
Title 24 Compliant
An IVEPARK edgelit garage fixture with a WS2 control option can be used to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,c)
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
Up to 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 100W Metal Halide
Construction
Cold Weather Starting
The minimum starting temperature is -20°C (-4°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Lens
Diffused Polymethyl Methacrylate (PMMA)
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Surface mount standard (accessories available for wall, pole and trunnion mount)
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Electrical
Driver
Class 2, 50/60Hz, 120-277V, 4kV standard, 10kV optional, 120V: 0.24A, 208V: 0.14A, 240V: 0.12A, 277V: 0.11A
THD
11.64% at 120V, 14.55% at 277V
Power Factor
98.78% at 120V, 91.5% at 277V

Recently Viewed Products

 This is a link to the product IVGT5-30L730ZU IVGT5-30L730ZU
Garage Lights 3789 Lumens Ivgt5 Type V 28W 70Cri 3000K Bronze 120V-277V 0-10V Dimming
 This is a link to the product A19-9-E26-922/30-F-C-WGD A19-9-E26-922/30-F-C-WGD
A-Line Bulbs 810 Lumens A19 9W Base E26 90Cri 2200K-3000K Filament Clear Dim To Warm

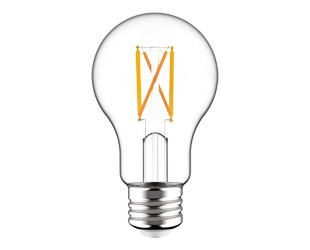

 This is a link to the product A19-5-E26-922/30-F-C-WGD A19-5-E26-922/30-F-C-WGD
A-Line Bulbs 450 Lumens A19 5W Base E26 90Cri 2200K-3000K Filament Clear Dim To Warm
 This is a link to the product H17XXL H17XXL
H17 Highbay 500/400/300W 3000K/4000K/5000K 120-277V White
 This is a link to the product HALV10L927-LH-W HALV10L927-LH-W
Architectural 155 Lumens Halv Forward Light 14W 90Cri 2700K Linen Harbor Lens White Finish

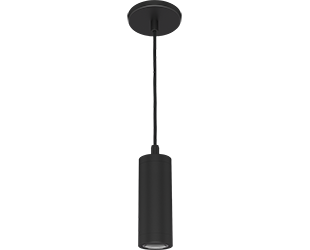

 This is a link to the product CDLED2PC-10W-20D930-K CDLED2PC-10W-20D930-K
