Performance
Watts 69W
Color Temp 3000K (Warm)
Lumens 7,658 lm
Efficacy 118.7 lm/W
Color Accuracy 71 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V
208V
240V
277V
Input Watts 64.5W
Dimensions
Link to Dimension Drawing

Weight: 7.0 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IP Rating
Ingress protection rating of IP66 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
California Title 24
Can be used to conform with the requirements of California Title 24 Part 6.
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
Up to 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 250W Metal Halide
Construction
Cold Weather Starting
The minimum starting temperature is -20°C (-4°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Lens
Diffused Polymethyl Methacrylate (PMMA)
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Surface mount standard (accessories available for wall, pole and trunnion mount)
Sensor Settings
Multi Level Motion Sensor
/WS sensor options use state-of-the-art surface mount technology (SMT), just like cellular phones and beepers. SMT gives you more reliability, greater RF immunity. This compact sensor that can fit neatly where others cannot. This sensor technology automatically affects the state of operation for lighting systems or individual luminaries based upon detecting the presence or absence of movement for both people as they exit/enter, or for the motion of moving vehicles within the sensors viewing area. The wide 180° viewing angle can detect movement along the entire side of a building with only one compact sensor. The hard lens is molded as part of the case, vandalproof, rainproof, bugproof and absolutely sealed. Sensor functions best when movement is across its detection pattern, not towards the sensor.
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Electrical
Driver
Class 2, 50/60Hz, 480V 4kV standard, 10kV optional, 480V: 014A
THD
8.03% at 480V
Power Factor
99.6% at 480V

Recently Viewed Products

 This is a link to the product NDLED4SD-WYYHC-M-W NDLED4SD-WYYHC-M-W
Recessed Downlights 12 Lumens Ndled4Sd 4 Inch Square Universal Dimming Wall Washer Beam Spread 2700K 90Cri Matte Silver Cone White Trim
 This is a link to the product GN2LED26YSST11LB GN2LED26YSST11LB
Decorative 1348 Lumens Gooseneck 26W 3000K 35 Inches Arm Straight Shade Spot Reflector 11 Inches Light Blue
 This is a link to the product BLEDR24YK BLEDR24YK
Bollard Round 42" 24W Led Warm Black

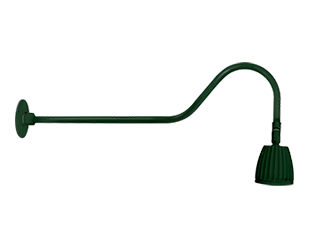

 This is a link to the product GN2LED13YG GN2LED13YG
