• Simple to connect multiple fixtures
  • Available in four sizes (8", 16", 24" and 32") and two color finishes (white & brown)
  • Compatible with common ELV & TRIAC dimmers
View Technical Specs
Performance
Watts 5W
Color Temp 2700K (Residential Warm)
Lumens 253 lm
Efficacy 57.5 lm/W
Color Accuracy 93 CRI
L70 Lifespan 50,000 Hours
Type Constant Current
120V 0.04A
208V
240V
277V
Input Watts 4.4W

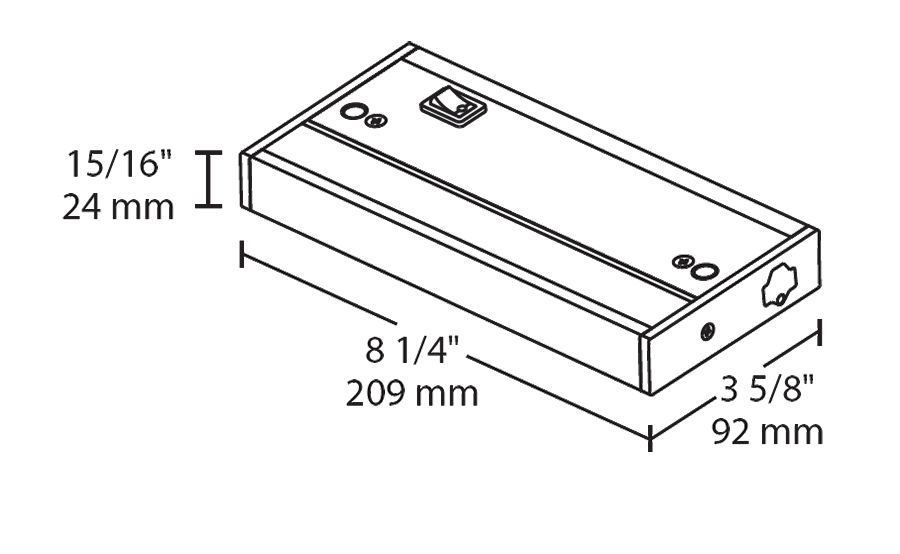

Dimensions
Link to Dimension Drawing

Weight: 1.0 lbs

Technical Specifications
Compliance
UL Listed
Suitable for damp locations
Energy Star Approved
ENERGY STAR® Version 2.0 Certified
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 20W Halogen or 5W Fluorescent
Construction
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Housing
Die-formed steel with injection-molded endcaps
Lens
Frosted polycarbonate diffusion lens
Mounting
Undercabinet surface
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Formulated for high durability and long-lasting color
Other
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
Electrical
Driver
Constant Current, Class 2, 60 Hz, 120V: 0.04A
THD
20.8% at 120V
Power Factor
91.5% at 120V
