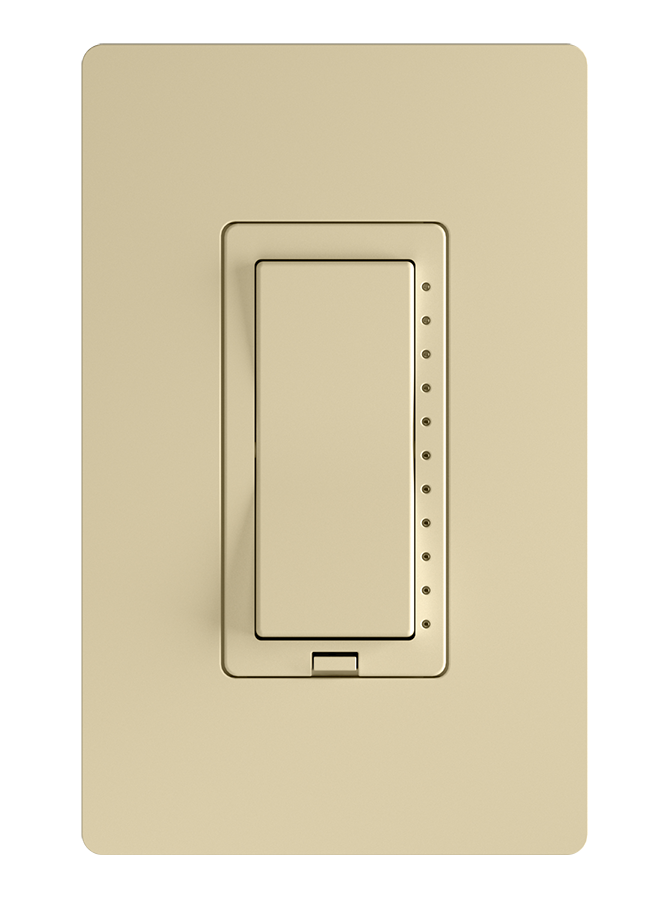

LCDIMMER/PD/I
LCDIMMER/PD/I
- In-wall device for switching, dimming and scene control
- Switches/dims local load (ELV/MLV)
- Available in White, Black, Ivory, Light Almond and Gray
- Dimming features both fade on/off and rapid full-on
- Assign scenes to top and/or bottom buttons
- Set the max trim level for a zone or fixture to save energy
- Use together with other Lightcloud Controller or Sensor devices
- Also available with blank face plate for plenum applications
Dimensions
Weight: 0.2 lbs
Technical Specifications
Compliance
UL Listed
UL1472 Indoor use only
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
Electrical
Installation
All Lightcloud components should be installed by a licensed electrician in accordance with local codes.
Input Voltage
120VAC
Frequencies
50/60 Hz
Electrical Ratings
60 mA
Load Switching Capacity
450W LED (reverse phase)
450W Incandescent (reverse phase)
450W Magnetic Low Voltage (symmetric forward phase)
450W Electronic Low Voltage (reverse phase)
450W Dimmable CFL (reverse phase)
450W Incandescent (reverse phase)
450W Magnetic Low Voltage (symmetric forward phase)
450W Electronic Low Voltage (reverse phase)
450W Dimmable CFL (reverse phase)
Storage Temperature Range
-40°F to 185°F (-40°C to 85°C)
Construction
Operating Temperature Range
0°C to 40°C
Maximum Relative Humidity
85%
Wire Gauge
Black (Line - 16AWG)
White (Neutral - 16AWG)
Red (Load - 16AWG)
Green (Earth - 18AWG)
White (Neutral - 16AWG)
Red (Load - 16AWG)
Green (Earth - 18AWG)
Wireless Range
Line of Sight
1000 ft
Obstructions
100 ft
Other
Warranty
10-year full hardware warranty with 100% repair/replacement coverage for all properly installed devices. See Lightcloud Warranty Terms.
