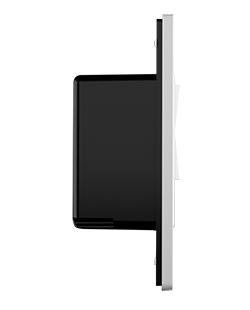

LCDIMMER/SENSE/W
  • Passive infrared (PIR) motion detector
  • Control individual or groups of Lightcloud devices
  • Occupancy and vacancy sensing with adjustable sensitivity and timeouts
  • Communicates over secure wireless mesh network - no internet required
  • Requires compatible Lightcloud Controller or driver
  • Closed loop daylight harvesting
View Technical Specs
Technical Specifications
Product Details
Mounting Type
In-wall
Construction
Operating Temperature Range
0°C to 40°C
Maximum Relative Humidity
95%
Wire Gauge
18AWG grounding; terminals supporting up to 16AWG wire
Electrical
Storage Temperature Range
-40°C to 85°C (-40°F to 185°F)
Input Voltage
120-277VAC
Frequencies
50/60 Hz
Electrical Ratings
6.2 mA at 120VAC, 3.8 mA at 277VAC
Sensor Settings
Detection Range
30-35 ft diameter at 4 ft mounting height
Other
Warranty
10-year full hardware warranty with 100% repair/replacement coverage for all properly installed devices. See Lightcloud Warranty Terms.
