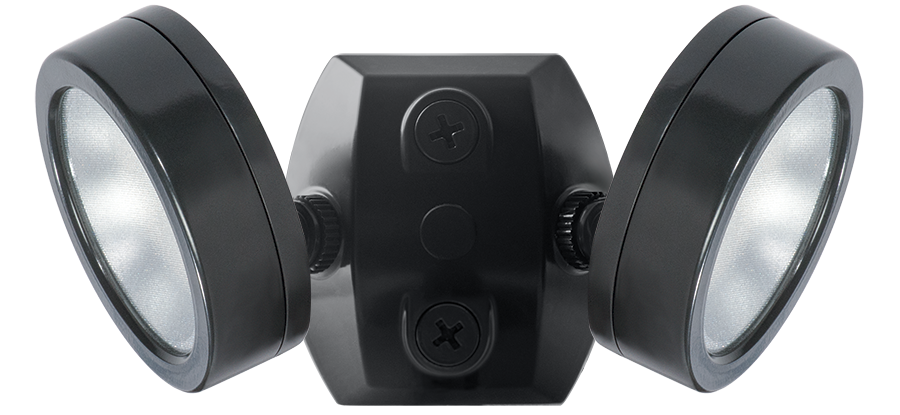

LES2X13

Spec Sheet Instructions Spec Sheet

LES2X13

Equivalent to two 75W halogen BR30 wide floods

6H x 6V beam distribution delivers ample light

Diffused lens for smooth, even light distribution

Adjustable knuckle

60,000-Hour LED lifespan

View Technical Specs

View Price & Availability

Performance

Watts	26W
Color Temp	5000K (Cool)
Lumens	2,716 lm
Efficacy	124.6 lm/W
Color Accuracy	84 CRI
L70 Lifespan	60,000 Hours

Type	Constant Current
120V	0.20A
208V
240V
277V
Input Watts	21.8W

Dimensions

Weight: 3.0 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for mounting within 4 feet of the ground.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P886GMOH

Optical

NEMA Type

6H x 6V Beam Spread

Construction

Cold Weather Starting

The minimum starting temperature is -40°C (-40°F)

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Housing

Precision die-cast aluminum housing, lens frame and mounting arm

Reflector

Vacuum-metalized polycarbonate

Lens

Diffused glass for smooth, even light distribution

Mounting

Pre-Assembled and wired for easy mounting EZ Hang hook. Compatible with round and rectangular surface mount boxes as well as recessed boxes.

Gaskets

High-temperature silicone gaskets

Finish

Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Other

Note

All values are typical (tolerance +/- 10%)

5 Yr Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Buy American Act Compliance

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

Driver

120V driver, 50/60/ Hz, 120V: 0.20A

THD

10.9% at 120V

Power Factor

99% at 120V
