LFXS - RAB Lighting

LFXS

Spec Sheet IES File LM79 Instructions Sell Sheet Folleto (Español) Family Spec Sheet Spec Sheet EZ Layout

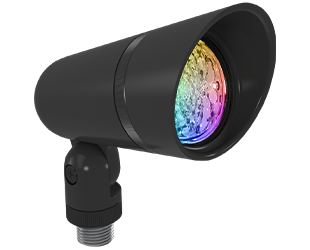

LFXS

13W 2700-5000K Tunable White; RGBW 16+ Million Colors

100,000-Hour LED lifespan

IP65 rating protects against dust and water

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	13W
Color Temp	2700-5000K Tunable White; RGBW 16+ Million Colors
Lumens	38-984 lm
Efficacy	6.7-79.9 lm/W
Color Accuracy	80-84 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.05A/0.10A
208V	0.03A/0.04A/0.06A/0.07A
240V	0.03A/0.05A/0.06A
277V	0.03A/0.05A
Input Watts	5.7-12.6W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 1.1 lbs

Technical Specifications

Lightcloud

Lightcloud Blue

Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.

DLC system - Interior: N1XMLOEATBA; Exterior: NHCZ2BIA17L

Learn more at www.lightcloud.com.

Gateway Required

Communication Protocol

Bluetooth Mesh

Range

Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.
Outdoor: Up to 100 feet clear line of sight; Up to 20 feet around corners. Heavy vegetation, bushes or trees may impact range significantly.

Spacing Criteria

Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network. Building materials such as brick, concrete, and steel construction or heavy vegetation, bushes or trees may require additional Lightcloud Blue devices to extend around an obstruction.

SmartShift

SmartShift is the most advanced - yet easiest to use - circadian lighting system, which syncs white color tuning with the local sunrise and sunset.
Requires the NANO/LCB (sold separately)

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
Color temperature: 2700-5000K Tunable White; RGBW 16+ Million Colors
Optics: 17°/33°/47° Beam Angle Adjustable (Factory Setting: 33°)

Compliance

UL Listed

Suitable for wet locations

IP Rating

Ingress protection rating of IP65 for dust and water

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

LED Characteristics

LEDs

Long-life, high-efficacy, discrete, surface-mount LEDs

Color Consistency

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

Electrical

Driver

Constant Current, Class 2 , 120-277V, 50/60 Hz 120V: 0.11A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A

Dimmable

Yes, via the Lightcloud Blue mobile app and devices.
This fixture will not operate properly when connected to a standard (incandescent) dimmer or dimming control.

Dim to Off

Aux Power Supply

Surge Protection

L-N: 2 kV
L-PE, N-PE: 4 kV

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Housing

Die-cast aluminum

Tilt Increment

Rotates in 2 degree increments

Lens

Glass

Reflector

Polyethylene Terephthalate (PET)

Gaskets

Silicone and Nitrile rubber

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Knuckle arm mount

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
