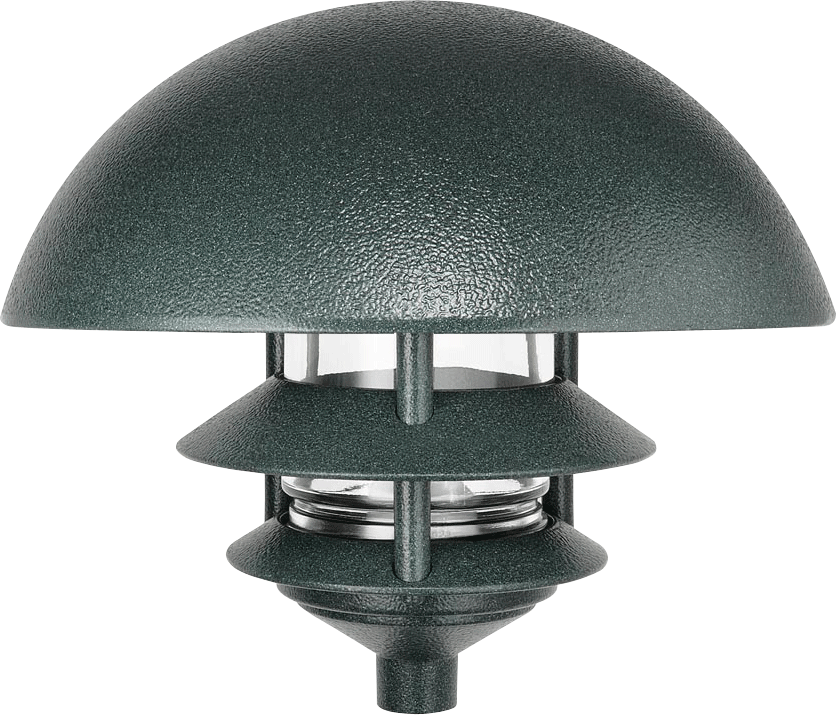

• New Dome Top allows a wide light spread for wider walkways and parking lots
  • Rugged die cast aluminum housing with durable powder coating
  • Socket with all copper electrical parts and 20" leads
  • Quick and secure installation with one corrosion-proof screw
  • Threaded, gasketed globes for durable weatherproofing and easy relamping
  • 12" color matched mounting stem with 1/2" threads available
  • Includes easy mounting 1/2" threaded nipple
View Technical Specs
Performance
Watts 75W
Color Temp
Lumens 1,220 lm
Efficacy
Color Accuracy
L70 Lifespan
Type
120V
208V
240V
277V
Input Watts
Dimensions
Link to Dimension Drawing

Weight: 4.2 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4 ft of the ground.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Electrical
Socket
Medium base porcelain with all copper electrical parts and 20" leads, including a ground lead
Voltage
120V AC
Construction
Globes
Threaded, gasketed globe protects against weather, garden sprinklers and insects. Clear glass GL 100 globes standard for 4 Tier. Clear glass GL60 globes standard for 3 Tier. GL100 white globes also available for attractive appearance and glare reduction.
Housing
Die-cast aluminum housing with powder coat finish
Two Level Light Cutoff
New Dome Top can adjust to Full-cutoff for narrow walkways and glare free lighting in garden areas by removing one tier
Dome Top
Wide light spread for wider walkways & parking lots where maximum light is required. Full-cutoff for narrow walkways & glare free lighting in garden areas.
Installation
Mounting Stem
Optional 12" mounting stem with 1/2" threads on both ends available here.
Optical
Lamp
Incandescent lamp not supplied. Medium base A-19 lamps, 120V. 75 watt max.
