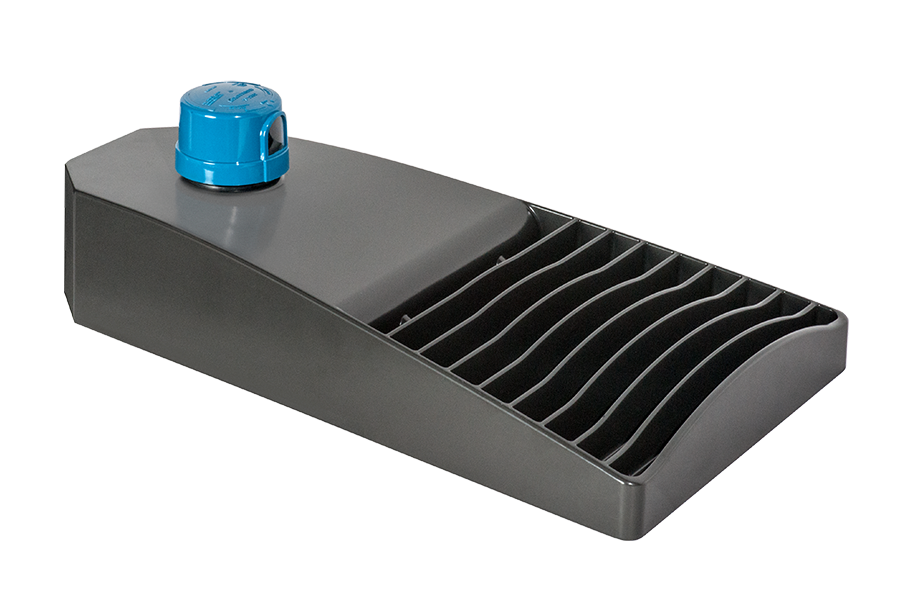

LOT2T110N/480/D10/PCT4

Spec Sheet Instructions Spec Sheet

DISCONTINUED

Lightweight design and low EPA minimize pole load

Best-in-class 5-G vibration rating

100,000-hour LED lifespan

View Technical Specs

Performance

Watts	110W
Color Temp	4000K (Neutral)
Lumens	14,691 lm
Efficacy	149.8 lm/W
Color Accuracy	73 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V
208V
240V
277V
Input Watts	98.1W

Dimensions

Weight: 20.9 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Electrical

Driver

Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.21A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

5.45% at 480V

Power Factor

92% at 480V

Photocell

480V Twistlock photocell included. Photocell is only compatible with 480V.

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Optical

IES Classification

The Type II distribution is meant for lighting large areas, located by the roadside. Typically found on wide walkways, on ramps, entrace roadways and bike paths.

Construction

Effective Projected Area (EPA)

EPA = 0.8

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs
