LOT2T160Y/D10/WS2
LOT2T160Y/D10/WS2 large main
DISCONTINUED
  • Lightweight design and low EPA minimize pole load
  • Best-in-class 5-G vibration rating
  • 100,000-hour LED lifespan
 View Technical Specs
Performance
Watts 160W
Color Temp 3000K (Warm)
Lumens 20,033 lm
Efficacy 125.7 lm/W
Color Accuracy 74 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 1.35A
208V 0.78A
240V 0.67A
277V 0.59A
Input Watts 159.4W
Dimensions
Link to Dimension Drawing

Weight: 20.9 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PT546F15
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 1.35A, 208V: 0.78A, 240V: 0.67A, 277V: 0.59A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
8.14% at 120V, 13.3% at 277V
Power Factor
99.5% at 120V, 93.5% at 277V
Surge Protection
L-N 4 kV; L-L, L-GND 6 kV
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Construction
IES Classification
The Type II distribution is meant for lighting large areas, located by the roadside. Typically found on wide walkways, on ramps, entrace roadways and bike paths.
Effective Projected Area
EPA = 0.8

Recently Viewed Products

This is a link to the product LOT2T160Y/D10/WS2 LOT2T160Y/D10/WS2
Area Lights 20033 Lumens Lotblaster 160W Type Ii 0-10V Dimming 120V-277V Wattstopper Sensor With 20 Ft Lens Bronze
This is a link to the product ALEDLAT/480/WS2 ALEDLAT/480/WS2
Aled 170-220-260W At 5000K Cool 480V Arm Wattstop 20Ft Lens Bronze
This is a link to the product HALV18L930-F-A HALV18L930-F-A
Architectural 1647 Lumens Halv Forward Light 25W 90Cri 3000K Frosted Lens Antique Bronze Finish
This is a link to the product ALED4T125SF/D10/WS4 ALED4T125SF/D10/WS4
Arealights 16328 Lumens Aled Type Iv Slipfitter 5K 125W 120V-277V 0-10V Dimming Multi-Level Sensor With 40 Feet Lens Bronze
This is a link to the product ALED2T78SFYK/480/WS2 ALED2T78SFYK/480/WS2
Arealights 9336 Lumens Aled Type Ii Slipfitter 3000K 78W 480V Multi-Level Sensor With 20 Feet Lens Black

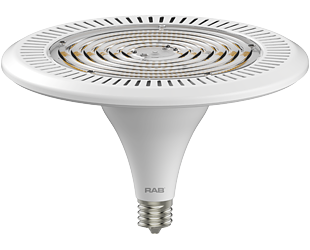

This is a link to the product HID-135-V-EX39-850-BYP-HB HID-135-V-EX39-850-BYP-HB
