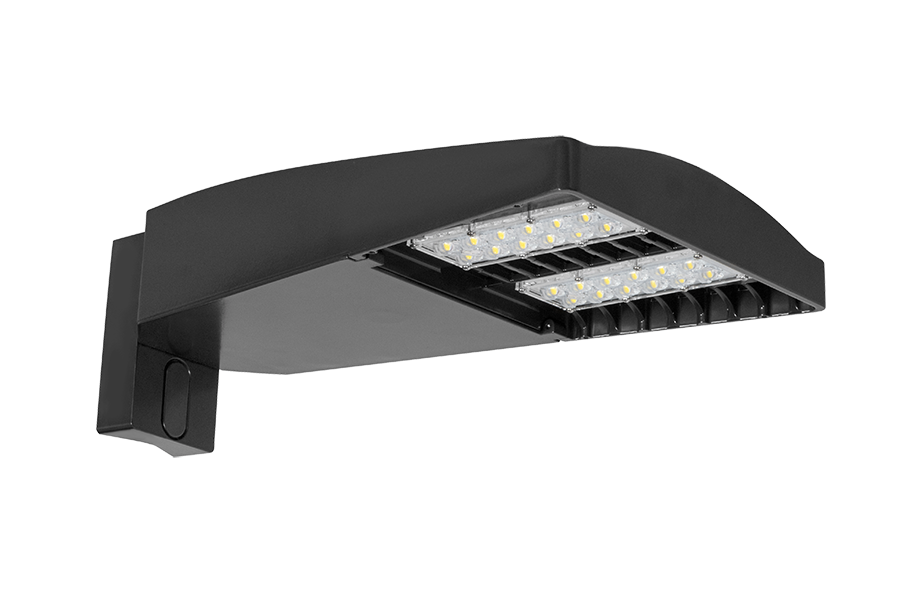

LOT4T110/D10/UPA/5PR
LOT4T110/D10/UPA/5PR large main
DISCONTINUED
  • 100,000-hour LED lifespan
  • Type IV distribution
 View Technical Specs
Performance
Watts 110W
Color Temp 5000K (Cool)
Lumens 15,034 lm
Efficacy 140.1 lm/W
Color Accuracy 77 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.93A
208V 0.54A
240V 0.47A
277V 0.40A
Input Watts 107.3W
Dimensions
Link to Dimension Drawing

Weight: 20.9 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PE5GJRRE
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.93A, 208V: 0.54A, 240V: 0.47A, 277V: 0.40A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
5.05% at 120V, 12.25% at 277V
Power Factor
99.5% at 120V, 94.2% at 277V
5-Pin Receptacle
ANSI C136.41 5-pin receptacle, compatible with wireless control systems
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
The Type IV distribution (also known as a Forward Throw) produces a semicircular distribute, and is especially suited for mounting on sides of buildings or walls and perimeter of parking areas
Construction
Effective Projected Area
EPA = 0.8
