LOT5T160/D10/UPA/PCT

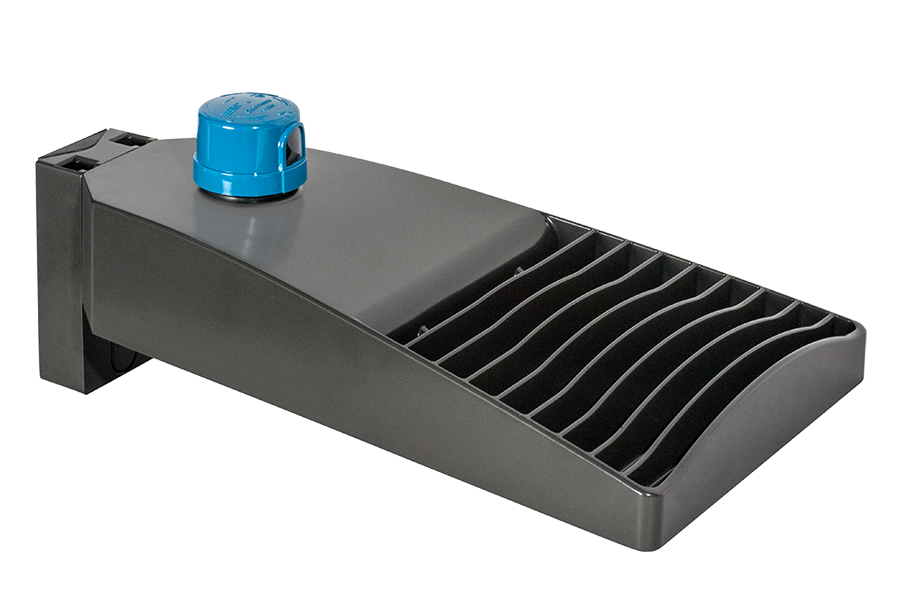

LOT5T160/D10/UPA/PCT large main
DISCONTINUED
  • Lightweight design and low EPA minimize pole load
  • Best-in-class 5-G vibration rating
  • 100,000-hour LED lifespan
 View Technical Specs
Performance
Watts 160W
Color Temp 5000K (Cool)
Lumens 22,315 lm
Efficacy 141 lm/W
Color Accuracy 75 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 1.35A
208V 0.78A
240V 0.67A
277V 0.59A
Input Watts 158.3W
Dimensions
Link to Dimension Drawing

Weight: 20.9 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P77QSRJR
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 1.35A, 208V: 0.78A, 240V: 0.67A, 277V: 0.59A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
8.67% at 120V, 13.6% at 277V
Power Factor
99.5% at 120V, 93.3% at 277V
Photocell
120-277V Twistlock photocell included. Photocell is compatible with 120-277V.
Surge Protection
L-N 4 kV; L-L, L-GND 6 kV
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Construction
IES Classification
Type VS distributes light in a square symmetrical pattern and is meant for large, commercial parking lot lighting as well as areas where sufficient, evenly distributed light is necessary
