MDLED1X12L-30N-B-W

Spec Sheet IES File LM79 Instructions Spec Sheet EZ Layout

MDLED1X12L-30N-B-W large main

MDLED1X12L-30N-B-W

Single 12 Watt LED head

Fixture head rotates a full 360° and tilts up to 45°

Easily lock head in place with a thumb screw

Tool-less adjustment for 3 discrete positions: full recess, flush mount or semi-recessed

View Technical Specs

View Price & Availability

Performance

Watts	12W
Color Temp	4000K (Neutral)
Lumens	1,251 lm
Efficacy	77.2 lm/W
Color Accuracy	90 CRI
L70 Lifespan

Type	Constant Current
120V	0.13A
208V	0.09A
240V	0.08A
277V	0.07A
Input Watts	16.2W

EZ-Layout

Link to Ezlayout

Create Custom Lighting Layout

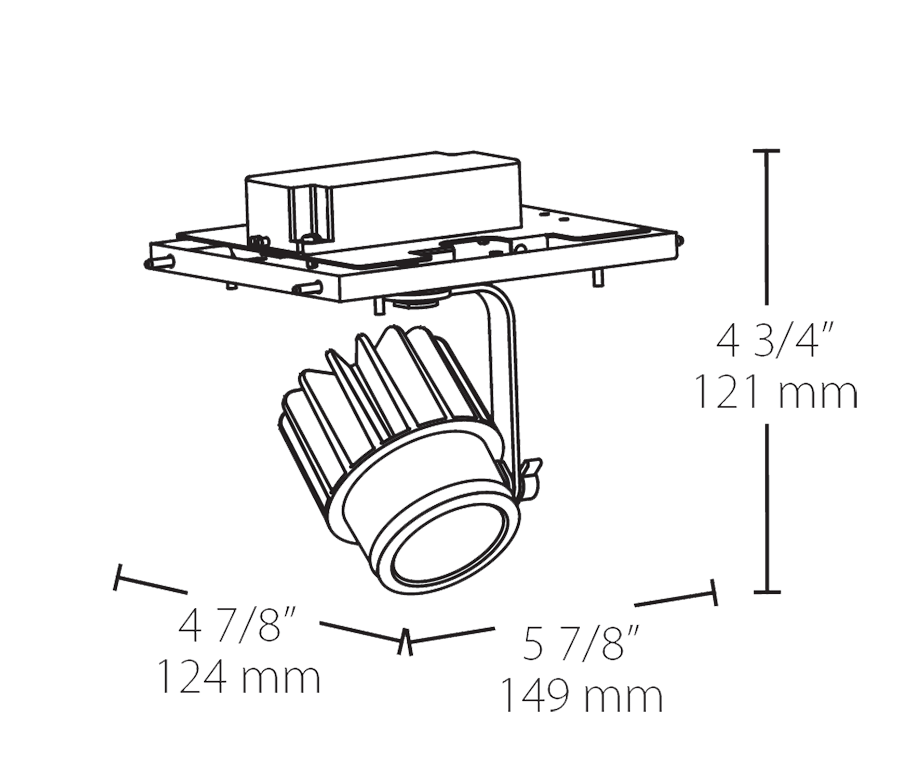

Dimensions

Link to Dimension Drawing

Weight: 2.6 lbs

Technical Specifications

Compliance

UL Listed

Suitable for damp locations

Construction

IC Rated

Suitable for direct contact with insulation

Gear Tray Component

This component must be ordered with Remodeler or New Construction housing in order to make a complete fixture. See here for Remodeler housing.
See here for New Construction housing.

Brackets

Butterfly brackets allow mounting with 1/4 x 1/2" bar stock, C Channel, 1/2" conduit, or nailer bars

Cold Weather Starting

The minimum starting temperature is 0°C/32°F Ambient Temperature

Electrical

Driver

Provided with Lutron L3DA4U1UKS-HC035 driver, Constant Current, Class 2, 120-277V, 50/60Hz,350mA, 0.7A, Power Factor 90%, THD _ 20%, Minimum Operating Temp 32° F (0°C).

Dimming Driver

Lutron Hi-Lume Dimming Driver. See compatibility guide here.

LED Characteristics

LED

High-output, long-life LED with 2 step binning and integrated driver technology
