MDLED3X12D10-30N-W
MDLED3X12D10-30N-W large main
  • Three 12 Watt LED heads
  • Fixture heads rotate a full 360° and tilt up to 45°
  • Easily lock heads in place with a thumb screw
  • Tool-less adjustment for 3 discrete positions: full recess, flush mount or semi-recessed
 View Technical Specs
View Price & Availability
Performance
Watts 36W
Color Temp 4000K (Neutral)
Lumens 3,753 lm
Efficacy 77.4 lm/W
Color Accuracy 90 CRI
L70 Lifespan
Type Constant Current
120V 0.36A
208V 0.24A
240V 0.21A
277V 0.18A
Input Watts 48.5W
Dimensions

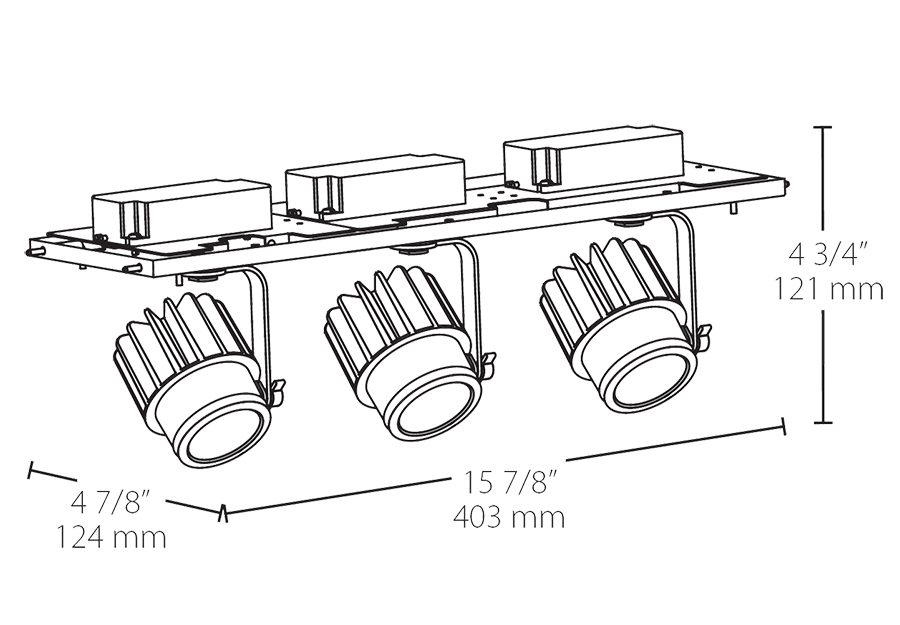

Link to Dimension Drawing

Weight: 6.6 lbs

Technical Specifications
Compliance
UL Listed
Suitable for damp locations
Construction
IC Rated
Suitable for direct contact with insulation
Gear Tray Component
This component must be ordered with Remodeler or New Construction housing in order to make a complete fixture. See here for Remodeler housing.
See here for New Construction housing.
Brackets
Butterfly brackets allow mounting with 1/4 x 1/2" bar stock, C Channel, 1/2" conduit, or nailer bars
Cold Weather Starting
The minimum starting temperature is -10°C/14°F Ambient Temperature
Electrical
Driver
0-10V, Constant Current, Class 2, 120-277V, 50/60Hz,350mA, 120V 0.17A, 277V 0.09A, Power Factor 99.4%, THD≤10%, Minimum Operating Temp 14° F (-100°C).
Dimming Driver
0-10V compatible dimmer as low as 10%. See compatibility guide here.
LED Characteristics
LED
High-output, long-life LED with 2 step binning and integrated driver technology
