MR16-7.5-830-25D-DIM has been discontinued. You have been redirected to its new replacement, MR16-7.5-930-25D-DIM-G2
Return to MR16-7.5-830-25D-DIM
MR16-7.5-930-25D-DIM-G2
MR16-7.5-930-25D-DIM-G2
- Produces rich and vibrant colors >90CRI
- Energy efficient replacement for incandescent and halogen Small diameter reflectors
- Constructed from durable materials which lowers risk of breakage
- Rated for use in enclosed and open fixtures in dry or damp locations
- Single optic and full face lens for precise beam angle control
- Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs
- Title 20 Compliant, ENERGY STAR Compliant, UL Listed
- Compatible with low voltage transformers (check compatibility list)
Performance
| Watts | 7W |
| Color Temp | 3000K (Warm White) |
| Lumens | 560 lm |
| Efficacy | 74.7 lm/W |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 25,000 Hours |
| Input Voltage | 12V |
| Power Factor | >0.9 |
| Flicker | ≤30% |
| THDi | N/A |
| R9 | 50 |

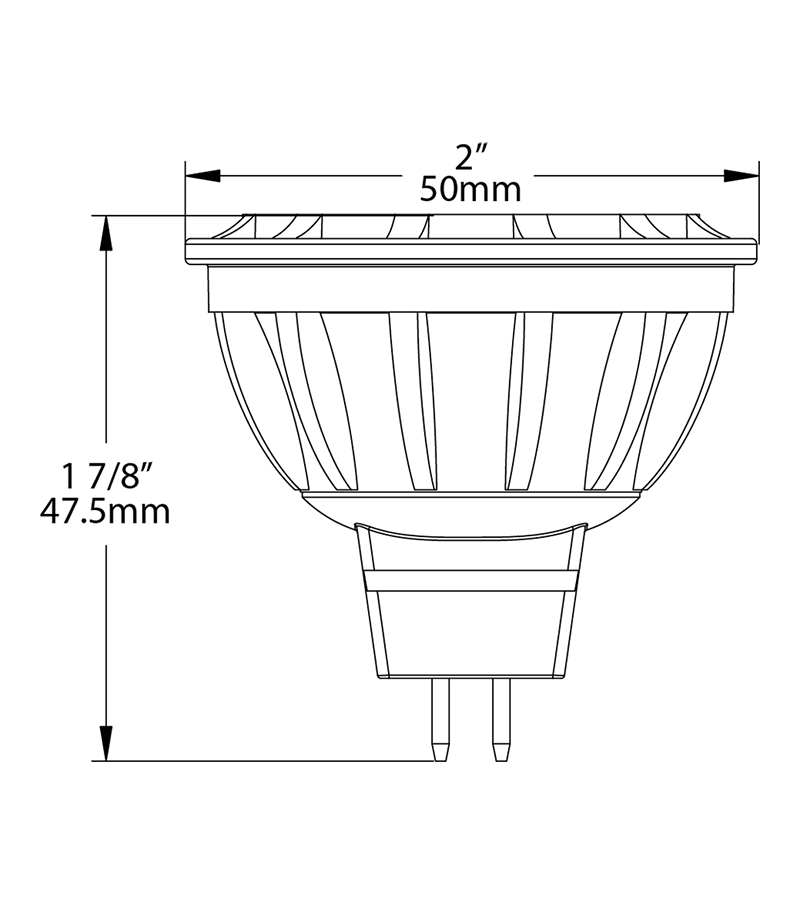

Dimensions
Weight: 0.1 lbs
Technical Specifications
Performance
Product Type
Small-Reflector
Input Wattage
7.5W
Wattage Equivalency
75W Halogen
Lumens
560lm
Efficacy
75lm/W
L70 Lifespan
25,000 Hours
Construction
Bulb Shape
MR16
For Use Outdoors in Open Fixtures
No
LED Characteristics
Color Temperature
3000K Warm White
Color Accuracy (CRI)
≥90
Beam Angle
25°
Installation
Base Type
GU5.3
Electrical
Power Factor
>0.9
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Dimmable
Yes
Input Voltage
12V
Flicker
≤30%
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
UL Listed
Yes
California Energy Commission (CEC) Status
Lawful for Sales in California
