Performance
| Watts | 50/40/30W |
| Color Temp | 2700K/3000K/3500K/4000K/5000K |
| Lumens | 2774-4724 lm |
| Efficacy | 85.1-109.7 lm/W |
| Color Accuracy | 92-95 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current, Class A |
| 120V | 0.42A/0.33A/0.25A |
| 208V | 0.23A/0.19A/0.14A |
| 240V | 0.20A/0.16A/0.12A |
| 277V | 0.19A/0.15A/0.12A |
| Input Watts | 28.8-48.1W |
Dimensions
Weight: 4.0 lbs
Technical Specifications
Performance
Product Type

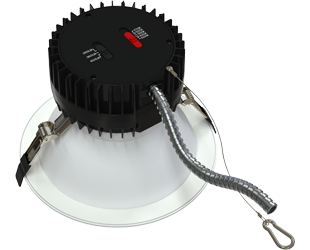

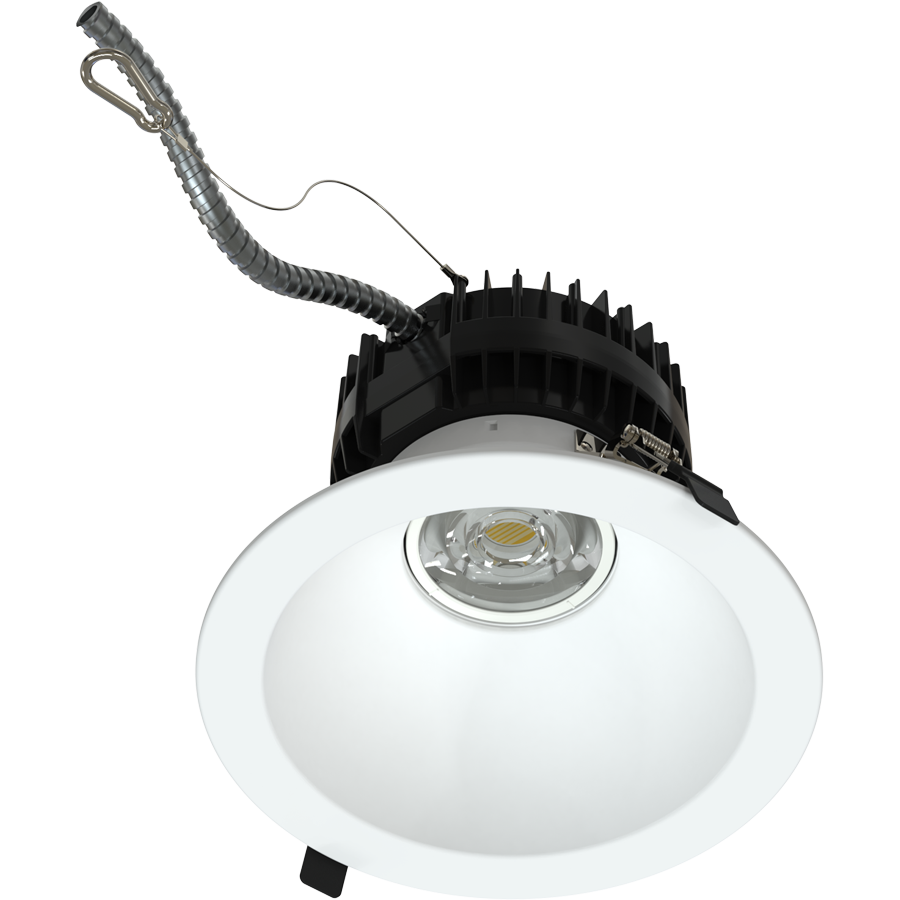

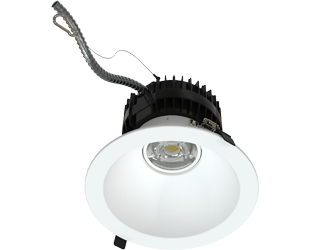

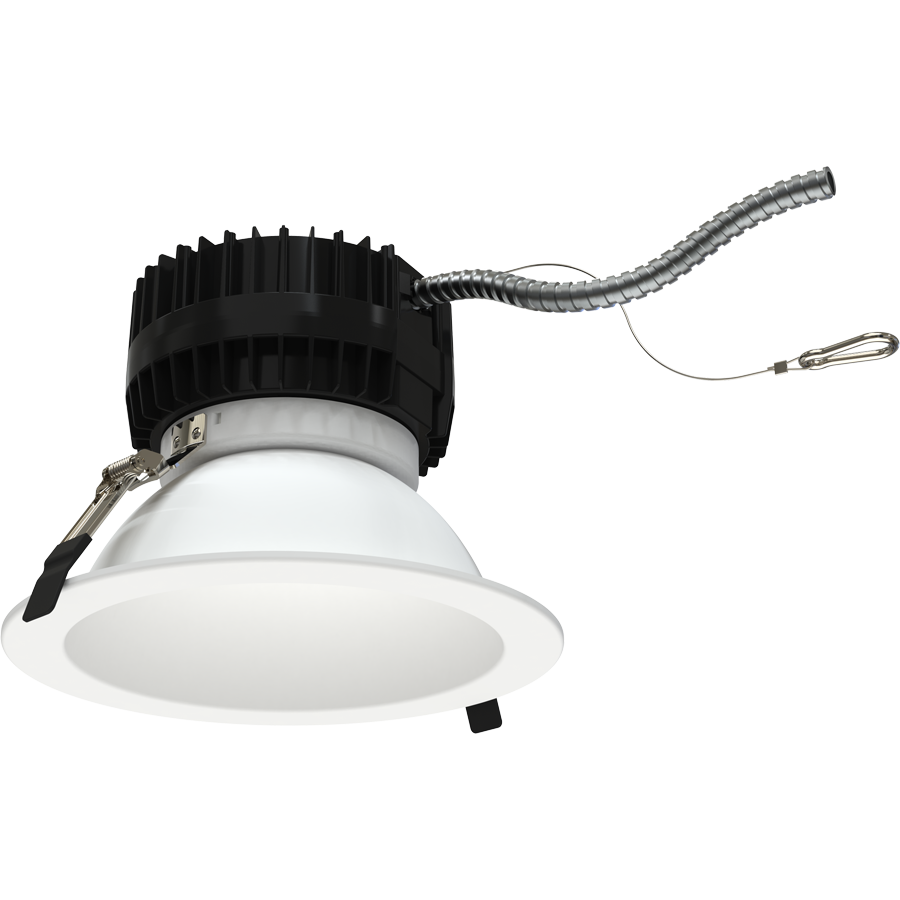

Modular Commercial Downlight
Description
Modular commercial downlights with field-adjustable wattage, CCT, and optics. Select from various interchangeable modules, trims, and accessories.
Input Wattage
50/40/30W
Lumens
4,500/3,800/2,900lm
Efficacy
90/95/96.7
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, Class A, 50/60 Hz, 120V-277V, 120V: 0.35A, 277V: 0.17A
THD
≤20%
Power Factor
≥0.9/120V
≥0.7/277V
≥0.7/277V
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV on 120V and 0-10V on 120-277V dimming systems. See Dimmer Compatibility List.
Controls
12V Aux for Lightcloud Blue compatibility
Input Voltage
120-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
417mA
Input Current @ 208V (mA)
240mA
Input Current @ 240V (mA)
208mA
Input Current @ 277V (mA)
181mA
Operating Temperature
-4°F to 104°F (-20 to 40°C)
Flicker
≤30%
Emergency Back up
Field-installable emergency backup available
LED Characteristics
Beam Angle
Adjustable 30° to 50° beam angle via rotating lens assembly
Color Temperature

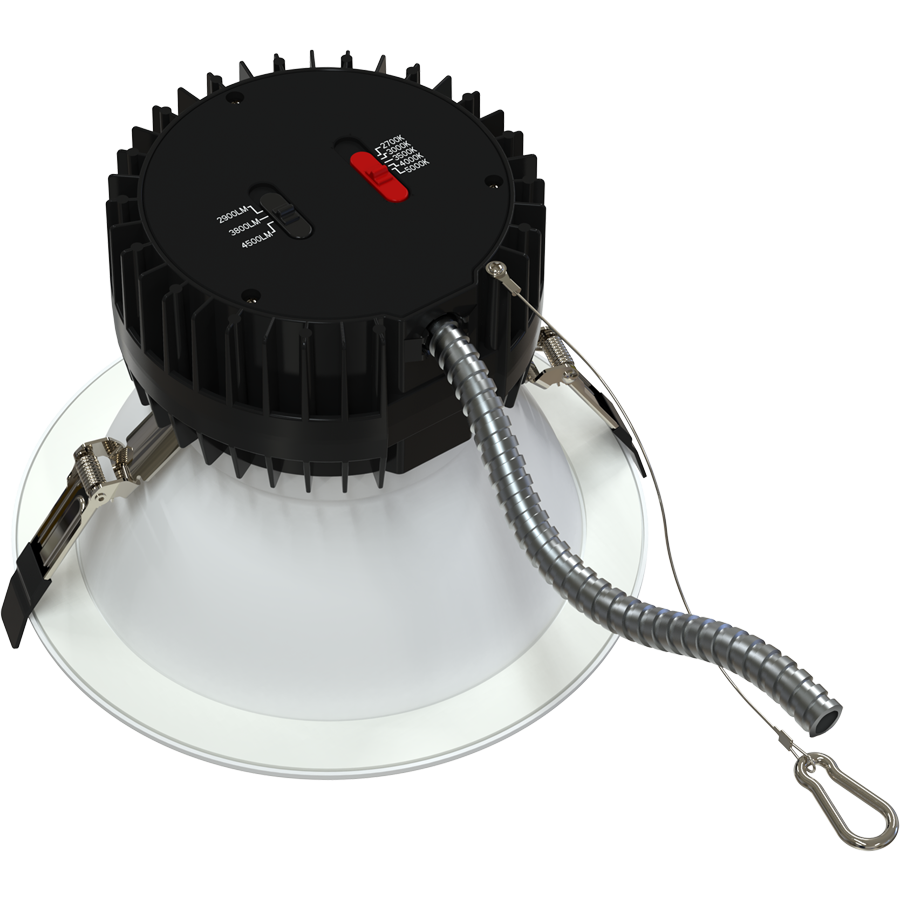

Field-adjustable via dip switch 2700/3000/3500/4000/5000K
Factory Setting
4000K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Set Up
Step 1: Choose the light engine
Step 2: Choose the trim style
Step 3: (Optional) choose a new construction housing
Step 4: (Optional) choose an EM battery or Lightcloud Blue Controller
Step 2: Choose the trim style
Step 3: (Optional) choose a new construction housing
Step 4: (Optional) choose an EM battery or Lightcloud Blue Controller
Mounting
Can be used in retrofit, remodel or new construction installations. Can accommodate up to 2" ceiling thickness
Construction
Cut Out Size
7.5"
Trim Size
8"
Trim Reflector
Smooth reflector constructed from anodized aluminum with powder coated paint finish
Trim Finish
White Flange and White Reflector
Lens
Curved decorative diffuser
Compliance
Listings
UL Listed, UL Classified
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IC Rated
No
Air Tight
Housing certified Air Tight as per ASTM-E283
Energy Star Approved
This product is ENERGY STAR® Version 1.0 Certified.
Energy Star ID
3554284
California Title 20 Compliant
No
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
Compatible Accessories
Emergency back up driver
EMB-9,EMB-15,EMB-25
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
