ND22-SFRAME - RAB Lighting

ND22-SFRAME

Spec Sheet Instructions Sell Sheet Family Spec Sheet Spec Sheet

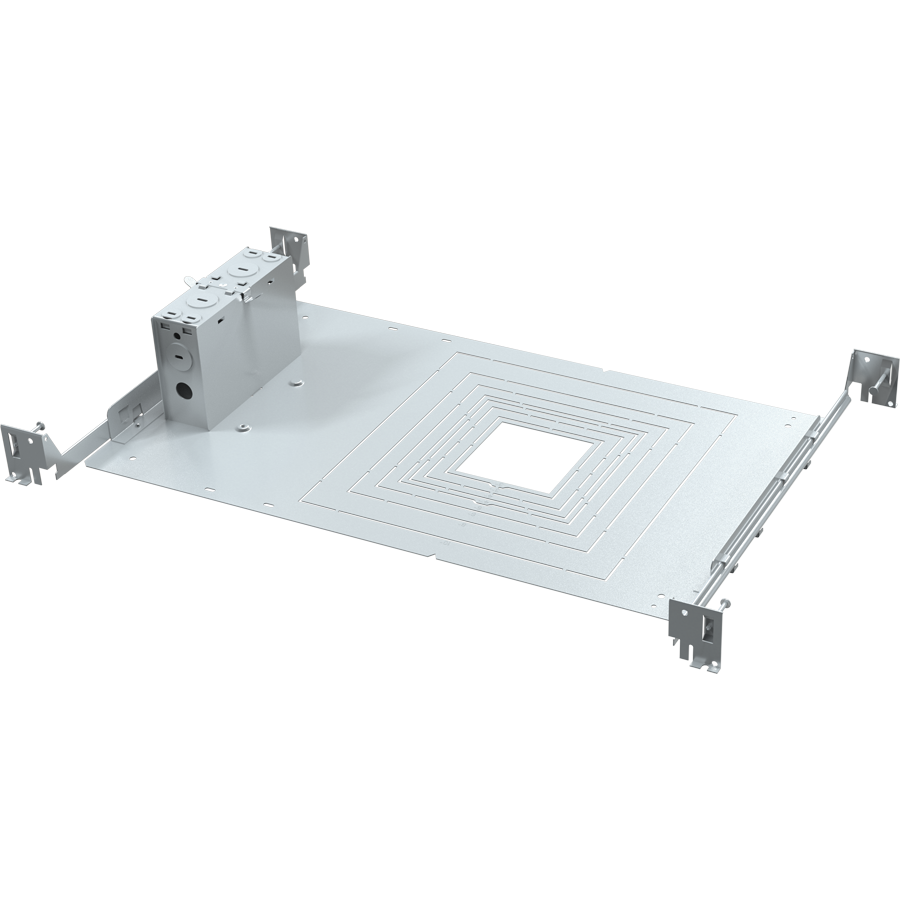

ND22-SFRAME large main

ND22-SFRAME

View Technical Specs

View Price & Availability

Performance

Watts
Color Temp
Lumens
Efficacy
Color Accuracy
L70 Lifespan	50,000 Hours

Type	Constant Current, Class A
120V
208V
240V
277V
Input Watts

Dimensions

Link to Dimension Drawing

Weight: 46.6 lbs

Technical Specifications

Performance

Product Type

New Construction Housing

Description

Modular commercial downlights with field-adjustable wattage, CCT, and optics. Select from various interchangeable modules, trims, and accessories.

Electrical

Controls

Can accept LCBAUX Controller

Construction

Trim Size

Compatible with 3", 4", 6", 8" & 10" trim reflectors

Trim Shape

Square

Compliance

IC Rated

No

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Compatible Products

ND22-12
3" Modular Downlight 12W

ND22-20
4" Modular Downlight 20W

ND22-30
6" Modular Downlight 30W

ND22-50
8" Modular Downlight 50W
