• Professional-grade, heavy-gauge steel construction with 1/2" trim
  • Housing includes nailer bars and butterfly brackets
  • Brackets also accommodate mounting with 1/4" to 1/2" bar stock, C channel or 1/2" conduit
  • Ceiling clamps install quickly and hold housing securely
  • Clamp ceilings from 1/2" to 2 1/2" thick, with course and fine adjustments.
View Technical Specs
Performance
Watts
Color Temp
Lumens
Efficacy
Color Accuracy
L70 Lifespan
Type
120V
208V
240V
277V
Input Watts
Dimensions

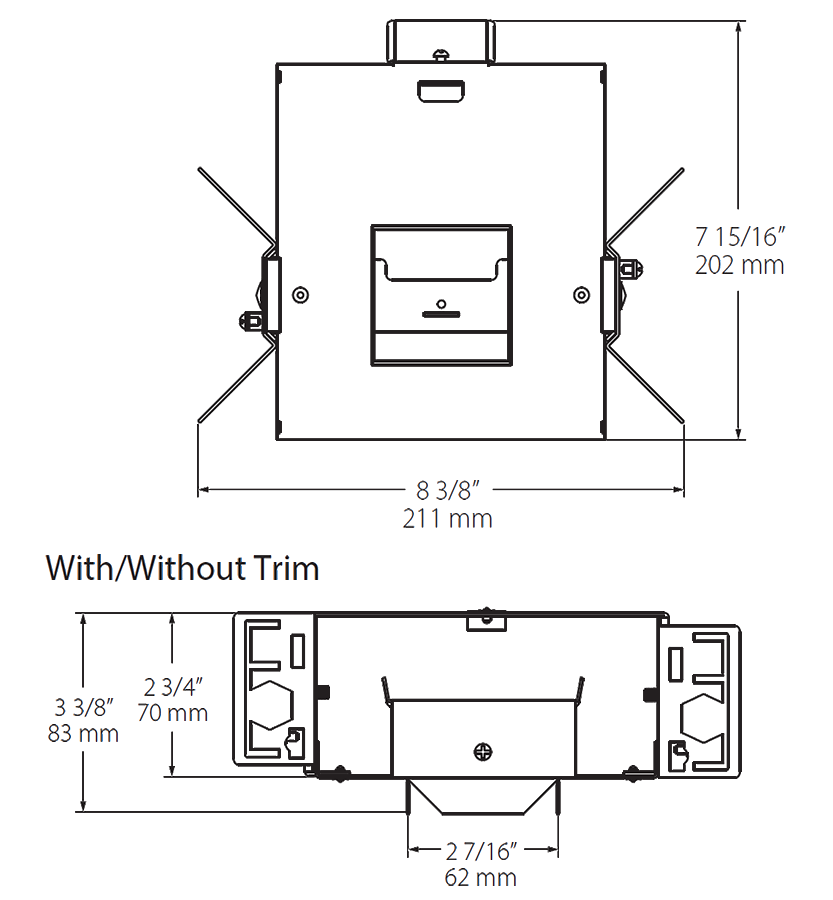

Link to Dimension Drawing

Weight: 2.8 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations in a covered ceiling
Energy Star Approved
ENERGY STAR® Version 2.0 Certified
Construction
Housing Component
This component must be ordered with the 2 inch deep regress downlights trim in order to make a complete fixture.
See here for Square 2" Deep Regress Trims
Housing
Professional-grade, heavy-gauge steel construction with 1 1/4" spackle flange for trim less installation
Mounting
Housing includes nailer bars and butterfly brackets. Brackets also accommodate mounting with 1/4" to 1/2" bar stock, C channel or 1/2" conduit.
Junction Box
Integral junction box with wiring capacity for
Min 60°C supply conductors
End of Run
Easy Installation
Ceiling clamps install quickly and hold housing securely. Clamp ceilings from 1/2" to 2 1/2" thick, with course and fine adjustments.
Trimless Look
Flush trim for a trimless look without the hassle. Complete ceiling finishing work (spackling, sanding, painting) before installing to ensure a clean trim.
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
