• Butterfly bracket allows mounting with bar stock, "C" channel, 1/2" conduit or nailer bars
  • Low-profile design allows for installation in ceilings with limited space
  • IC rated without additional hardware required
View Technical Specs
Performance
Watts
Color Temp Sold Separately
Lumens
Efficacy
Color Accuracy
L70 Lifespan
Type
120V
208V
240V
277V
Input Watts
Dimensions

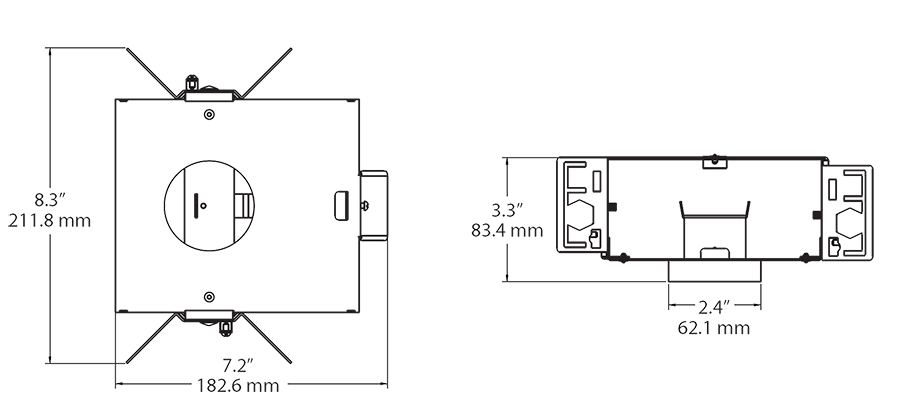

Link to Dimension Drawing

Weight: 2.8 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations in a covered ceiling
Construction
IC Rated
Suitable for direct contact with insulation
Housing Component
This component must be ordered with the 2 inch downlights trim in order to make a complete fixture.
See here for Round 2" Trims
See here for Square 2" Trims
Housing
Professional-grade, heavy-gauge steel construction with 1 1/4" spackle flange for trim less installation
Mounting
Housing includes nailer bars and butterfly brackets. Brackets also accommodate mounting with 1/4" to 1/2" bar stock, C channel or 1/2" conduit.
Junction Box
Integral junction box with wiring capacity for
Min 60°C supply conductors
End of Run
Air Tight
Housing certified Air Tight as per ASTM E283
Easy Installation
Ceiling clamps install quickly and hold housing securely. Clamp ceilings from 1/2" to 2 1/2" thick, with course and fine adjustments.
Trimless Look
Flush trim for a trimless look without the hassle. Complete ceiling finishing work (spackling, sanding, painting) before installing to ensure a clean trim.
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
