Suitable for wet locations in a covered ceiling

Suitable for direct contact with insulation

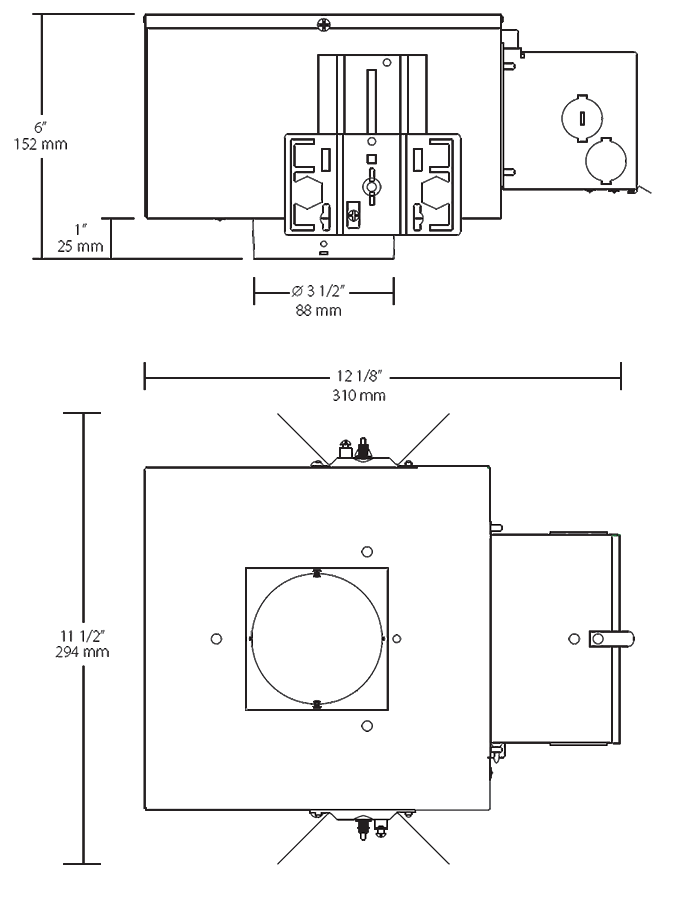

3" Rough-In

Accepts cones with trim

This component must be ordered with New Construction Round Trim Module in order to make a complete fixture.
See here for New Construction Round Trim Module.

The minimum starting temperature is -40°C (-40°F)

Suitable for use in up to 40°C (104°F)

Cold-rolled steel and aluminum

Nailer bar and butterfly brackets included; C-channels optional for acoustic tiles

Mercury and UV free. RoHS-compliant components.

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.24A, 208V: 0.15A, 240V: 0.13A, 277V: 0.12A

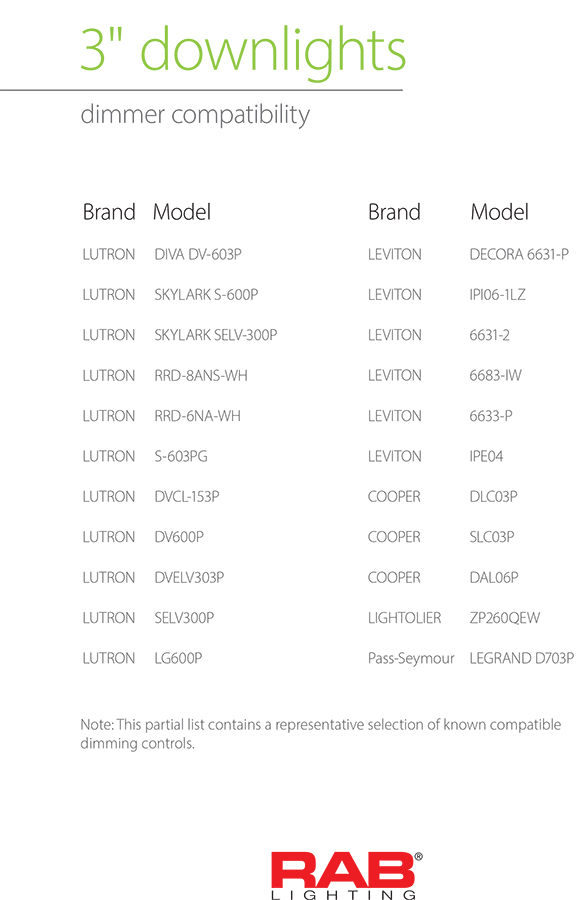

Universal dimming driver supports TRIAC, ELV and 0-10V. See dimmer compatibility guide here.

2kV

The performance table below shows photometric data for this rough-in with the following trim modules:
NDTRIM 80° white: 1617lm, 62lm/W
NDTRIM 50° white: 1672lm, 65lm/W
NDTRIM 40° adjustable white: 1775lm, 69lm/W
NDTRIM 20° adjustable white: 1748lm, 68lm/W
NDTRIM Wall Wash white: 1111lm, 43lm/W

NDTRIM 80° matte silver: 1626lm, 63lm/W
NDTRIM 50° matte silver: 1685lm, 65lm/W
NDTRIM 40° adjustable matte silver: 1836lm, 71lm/W
NDTRIM 20° adjustable matte silver: 1808lm, 70lm/W
NDTRIM Wall Wash matte silver: 1171lm, 45lm/W

NDTRIM 80° black: 1249lm, 48lm/W
NDTRIM 50° black: 1511lm, 58lm/W
NDTRIM 40° adjustable black: 1699lm, 66lm/W
NDTRIM 20° adjustable black: 1701lm, 66lm/W
NDTRIM Wall Wash black: 761lm, 30lm/W

2-step u'-v' Circle Tolerance, previously referred to as 2-step MacAdam Ellipse, achieves consistent fixture-to-fixture color (ANSI standard C78.377.2015)

High-efficiency TIR optics. Available as a downlight (80° or 50° beam), adjustable (40° or 20° beam with 40° vertical adjustment and 360° rotation), or a wall washer.

Available in battery backup option by special request. Contact RAB customer service to order.
