Suitable for wet locations in a covered ceiling

Suitable for direct contact with insulation

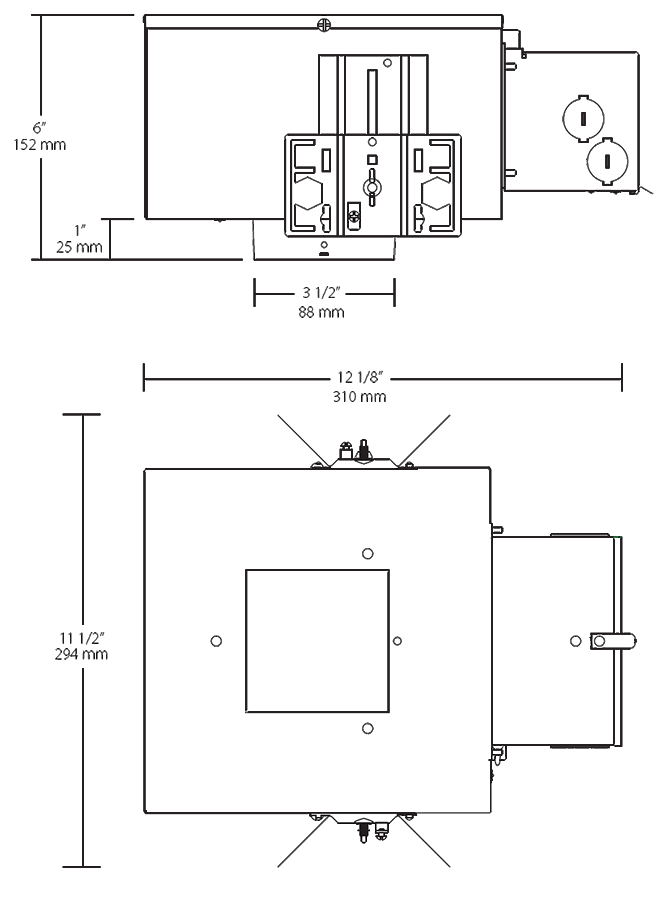

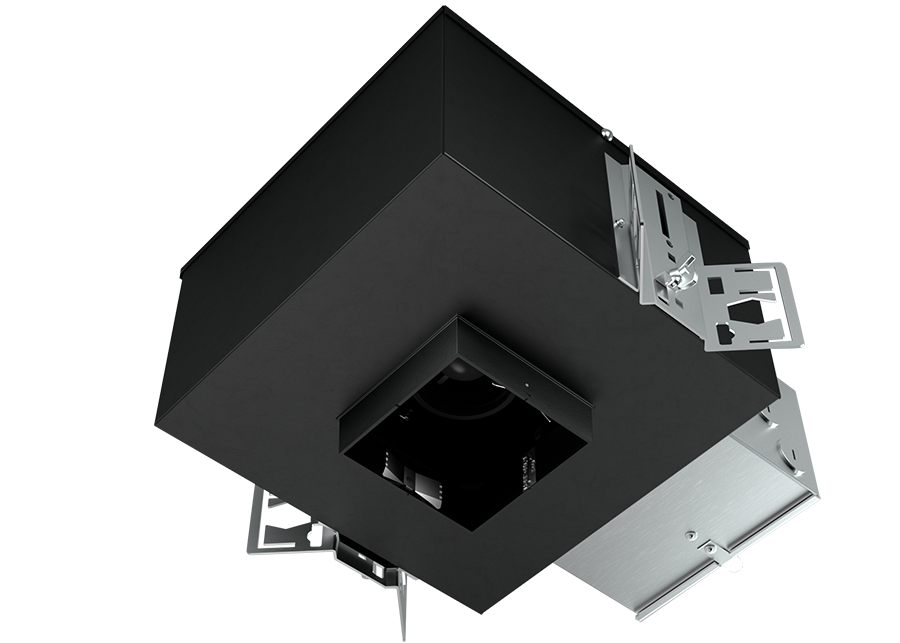

3" Rough-In

Accepts cones with trim

This component must be ordered with New Construction Round Trim Module in order to make a complete fixture.
See here for New Construction Round Trim Module.

The minimum starting temperature is -40°C (-40°F)

Suitable for use in up to 40°C (104°F)

Cold-rolled steel and aluminum

Nailer bar and butterfly brackets included; C-channels optional for acoustic tiles

Mercury and UV free. RoHS-compliant components.

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.24A, 208V: 0.15A, 240V: 0.13A, 277V: 0.12A

Universal dimming driver supports TRIAC, ELV and 0-10V. See dimmer compatibility guide here.

2kV

The performance table below shows photometric data for this rough-in with the following trim modules:
NDTRIM 80° white: 1416lm, 54lm/W
NDTRIM 50° white: 1477lm, 57lm/W
NDTRIM 40° adjustable white: 1580lm, 61lm/W
NDTRIM 20° adjustable white: 1546lm, 59lm/W
NDTRIM Wall Wash white: 1031lm, 40lm/W

NDTRIM 80° matte silver: 1423lm, 54lm/W
NDTRIM 50° matte silver: 1480lm, 57lm/W
NDTRIM 40° adjustable matte silver: 1604lm, 62lm/W
NDTRIM 20° adjustable matte silver: 1573lm, 60lm/W
NDTRIM Wall Wash matte silver: 1067lm, 41lm/W

NDTRIM 80° black: 1188lm, 45lm/W
NDTRIM 50° black: 1375lm, 53lm/W
NDTRIM 40° adjustable black: 1511lm, 58lm/W
NDTRIM 20° adjustable black: 1462lm, 56lm/W
NDTRIM Wall Wash black: 763lm, 29lm/W

2-step u'-v' Circle Tolerance, previously referred to as 2-step MacAdam Ellipse, achieves consistent fixture-to-fixture color (ANSI standard C78.377.2015)

High-efficiency TIR optics. Available as a downlight (80° or 50° beam), adjustable (40° or 20° beam with 40° vertical adjustment and 360° rotation), or a wall washer.

Available in battery backup option by special request. Contact RAB customer service to order.
