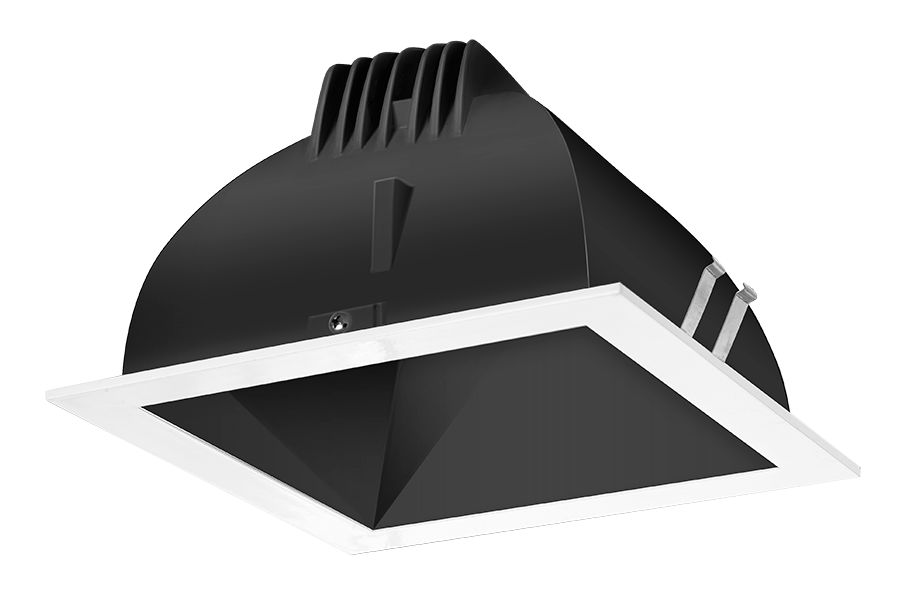

NDLED4SD-WYNHC-B-W

Spec Sheet Instructions Spec Sheet

NDLED4SD-WYNHC-B-W

Butterfly bracket allows mounting with bar stock, "C" channel, 1/2" conduit or nailer bars

Low-profile design allows for installation in ceilings with limited space

Absolute White 3-step consistency and black body accurate

Nanostructure lens eliminates "hot spots" providing smooth and efficient light

View Technical Specs

View Price & Availability

Performance

Watts
Color Temp	3500K (Warm Neutral)
Lumens
Efficacy
Color Accuracy	90 CRI
L70 Lifespan	100,000 Hours

Type	Sold Separately
120V
208V
240V
277V
Input Watts	See Rough-in*

Dimensions

Weight: 1.2 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations covered ceiling

Construction

Trim Component

This component must be ordered with New Construction Square Rough-In in order to make a complete fixture. See here for New Construction Square Rough-In.

Housing

Professional-grade, die-cast aluminum construction

Trim Ring

White powder coated die cast trim ring

Trim Cone

Black square trim cone

Drop Ceiling Installation

NDLED can be installed in drop ceiling tiles when using optional c-channel bars and following local construction codes

Aperture Size

4" Trim Module

Junction Box

Integral junction box with wiring capacity for
Min 90°C supply conductors
4 in 4 out

Easy Installation

The EZ-Connector makes installation easy

Electrical

Dimming Driver

0 - 10V (at 120-277V), TRIAC and ELV (at 120V only). See dimmer compatibility guide here.

Dimming

Dimmable. Requires rough-in with dimming driver.

Optical

Optics

Wall wash optics engineered for wide lateral distribution and smooth soft light from ceiling to floor

LED Characteristics

Color Consistency

3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
