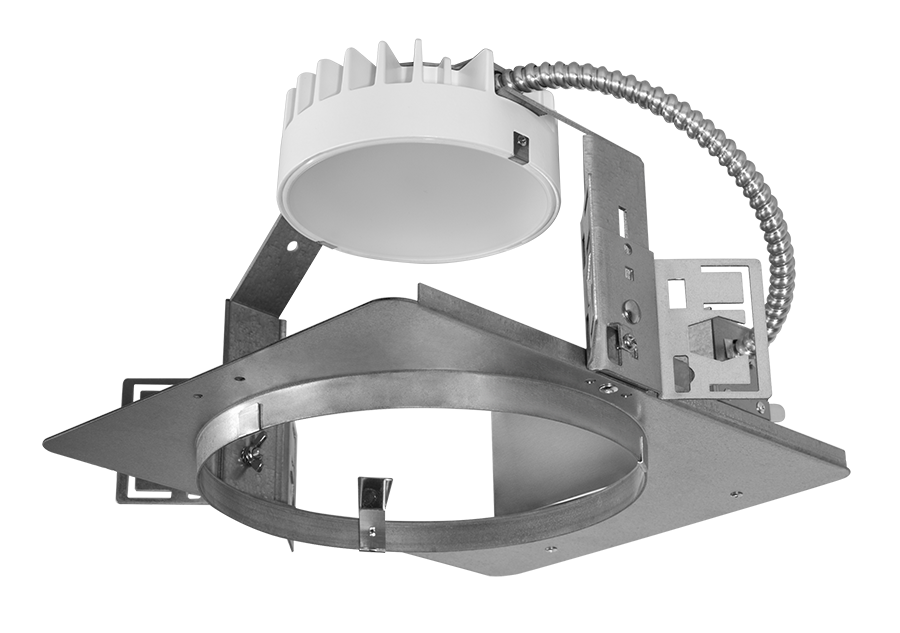

NDLED7R38N/LC
NDLED7R38N/LC
- Universal driver is compatible with TRIAC, ELV and 0-10V dimmers
- Lightweight design for easy installation and increased safety
- 100,000-Hour LED lifespan
Performance
| Watts | 38W |
| Color Temp | 4000K (Neutral) |
| Lumens | |
| Efficacy | |
| Color Accuracy | 82 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.31A |
| 208V | 0.19A |
| 240V | 0.17A |
| 277V | 0.14A |
| Input Watts | 38W |

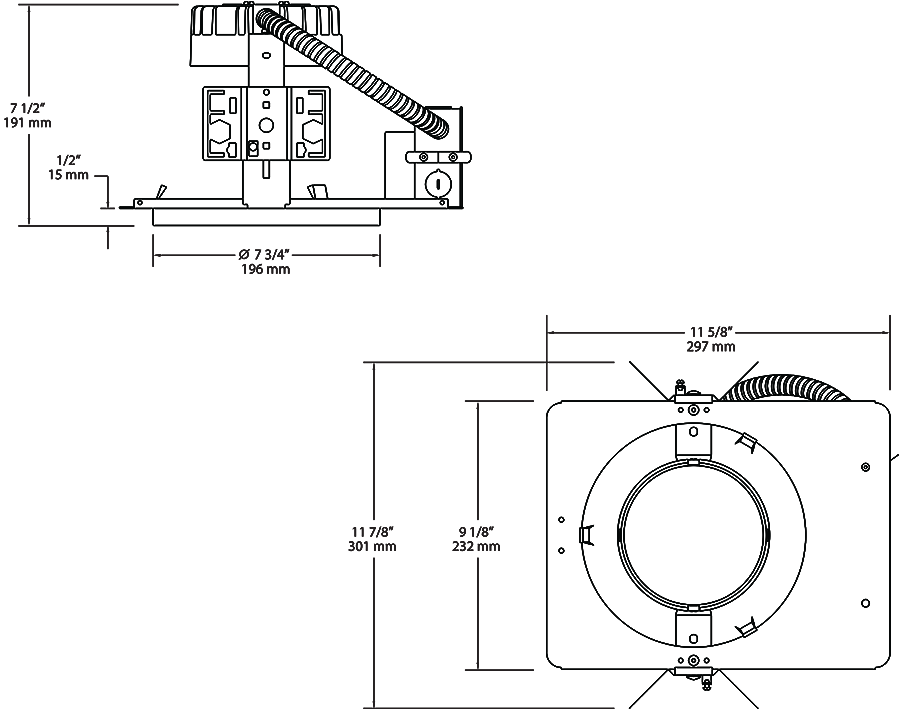

Dimensions
Weight: 8.0 lbs
Technical Specifications
Installed with Lightcloud
Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.
Learn MoreLightcloud
Lightcloud Controller Installed
Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more at www.lightcloud.com
Compliance
UL Listed
Suitable for wet locations in a covered ceiling
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Electrical
Driver
Class 2, Constant Current, 50-60Hz, 900mA
Dimming

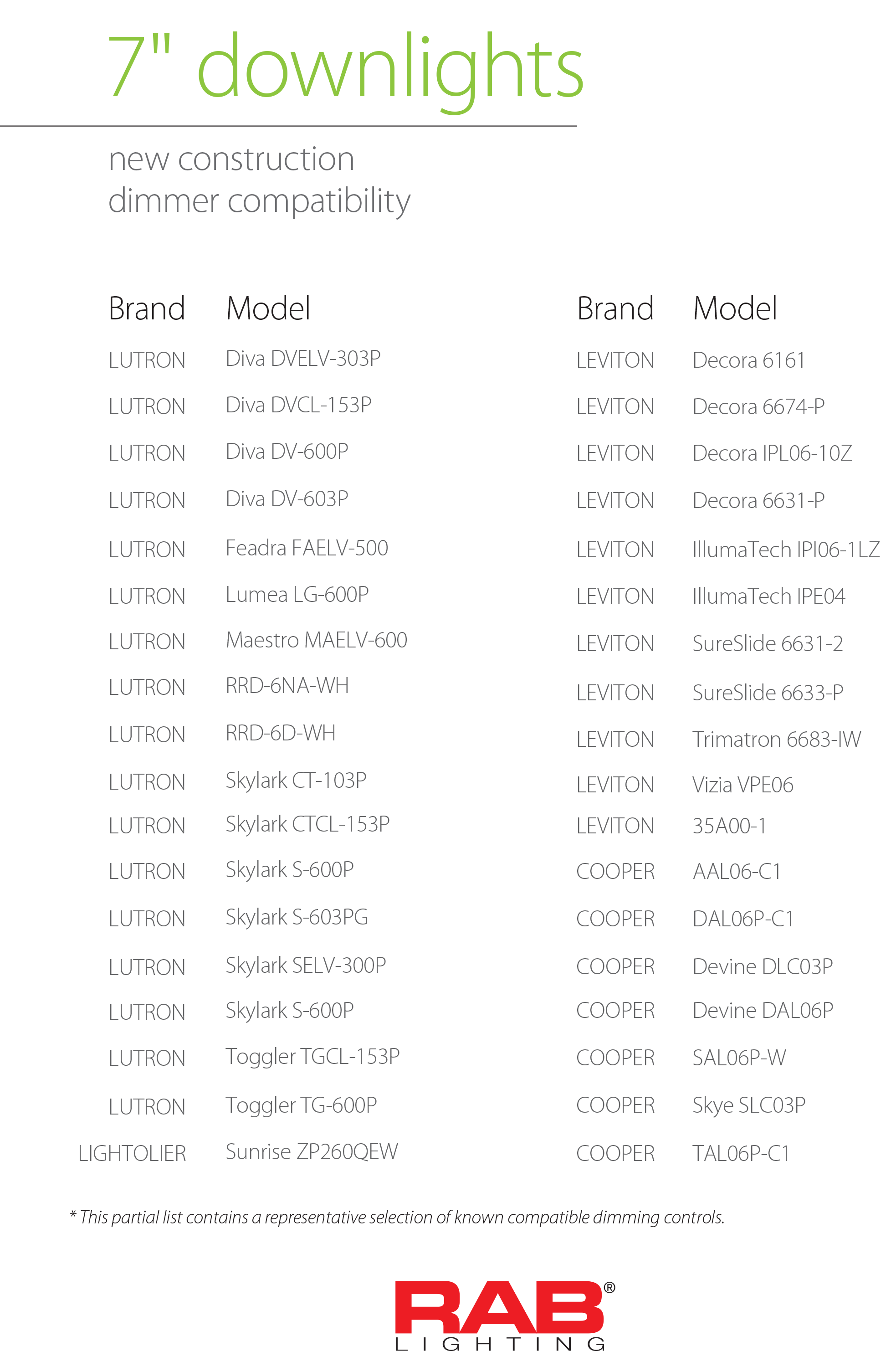

Universal dimming driver for 0-10V (at 120-277V), TRIAC or ELV (at 120V only). See dimmer compatibility guide here.
Surge Protection
6kV
Construction
Housing Component
This component must be ordered with New Construction Downlights Trim Module in order to make a complete fixture.
See here for Retrofit Reflectors.
See here for Retrofit Reflectors.
Housing
Formed galvanized steel construction
Cold Weather Starting
The minimum starting temperature is -30°C (-22°F)
Maximum Ambient Temperature
Suitable for use in up to 35°C (95°F)
Lens
Diffusion lens for smooth and even light distribution
Reflector
Spun aluminum
Heat Sink
Die-cast aluminum with external fins for maximum heat dissipation
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficiency surface-mount LEDs with 3 step binning
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of ten (10) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Replacement
Replaces 50 Watt Metal Halide and 32 Watt CFL
