NDTRIM3S40A-B-TL - RAB Lighting

NDTRIM3S40A-B-TL

Spec Sheet Instructions Spec Sheet

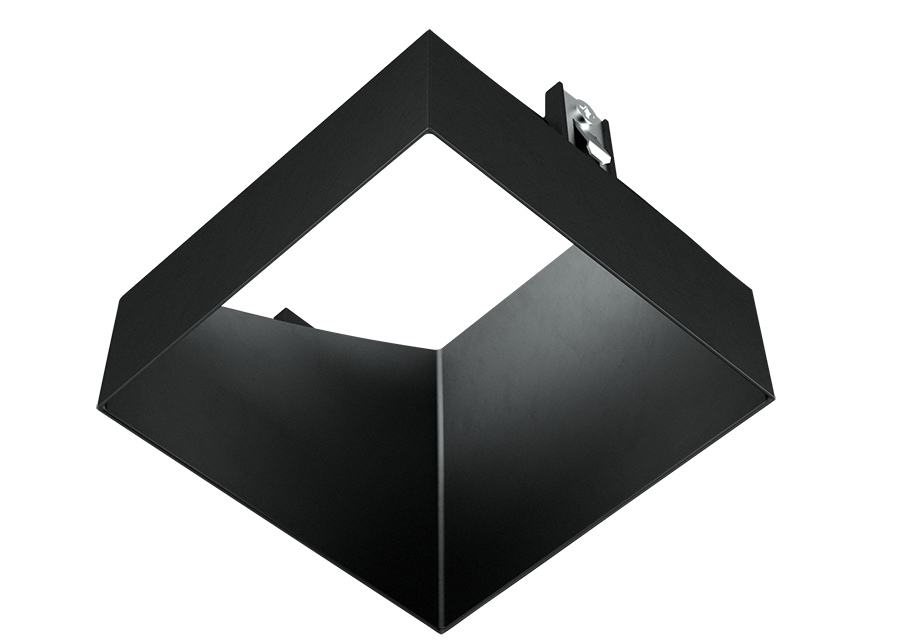

NDTRIM3S40A-B-TL large main

NDTRIM3S40A-B-TL

Durable die-cast aluminum

High-efficiency TIR optics

Optic and trim included

View Technical Specs

View Price & Availability

Performance

Watts
Color Temp
Lumens	See Table Below* lm
Efficacy
Color Accuracy
L70 Lifespan	See Rough-In* Hours

Type	Sold Separately
120V	See Rough-in*
208V	See Rough-in*
240V	See Rough-in*
277V	See Rough-in*
Input Watts

Dimensions

Link to Dimension Drawing

Weight: 0.7 lbs

Technical Specifications

Compliance

UL Listed

Suitable for damp locations

Optical

Optics

High-efficiency TIR optics available as a trimless adjustable 40° beam with 40° vertical adjustment and 360° rotation downlight. Optic and trim cone included.

Construction

Trim Component

This component must be ordered with New Construction Rough-In in order to make a complete fixture. See here for 3" New Construction Rough-In downlights.

Aperture Size

3" Trim Module

Trim Cone

Black square trim cone, die-cast aluminum

Trim

Trimless
